3-Ch RTD Input Module
3-Ch RTD Input Module

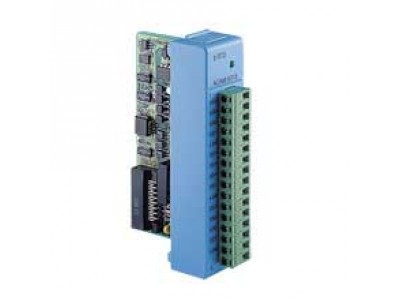

3-Ch RTD Input Module (ADAM-5013-A1E)

by Advantech

•

Part #: ADAM-5013-A1E


View Detailed Description

This product (Part #: ADAM-5013-A1E) has been retired or discontinued by the manufacturer. No direct replacement is available, please Call or chat with an L-Tron representative for recommendations on a substitute.

The ADAM-5013 is a 16-bit, 3-channel RTD input module that features programmable input ranges on all channels. This module is an extremely cost-effective solution for industrial measurement and monitoring applications. Its optical isolated inputs provide 3,000 VDC of isolation between the analog input and the module, protecting the module and peripherals from damage due to high input line voltage.

  • Channels: 3
  • Effective resolution: 16-bit
  • Input connections: 2, 3 or 4 wire
  • Input type: PT100 or Ni RTD
  • Isolation voltage: 3000 VDC
  • Sampling rate: 10 samples/sec. (total)
  • Accuracy: ±0.1% or better
    • Current Input-
    Current Output-
    Input Channel3
    Input Resolution16 bit
    Input Sampling Rate10 (total*)
    Output Channel-
    Voltage Input-
    Voltage Output-
    Output Resolution-
    Isolation3,000 VDC
