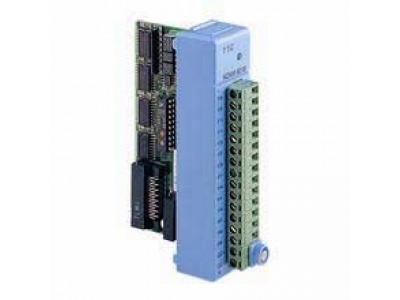

7-Ch Thermocouple Input Module (ADAM-5018-A1E)

by Advantech

•

Part #: ADAM-5018-A1E

View Detailed Description

0 reviews

This product (Part #: ADAM-5018-A1E) has been retired or discontinued by the manufacturer. No direct replacement is available, please Call or chat with an L-Tron representative for recommendations on a substitute.

The ADAM-5018 is a 16-bit, 7-channel thermocouple input module that features programmable input ranges on all channels. It accepts millivolt inputs (±15 mV, ±50 mV, ±100 mV, ±500 mV), voltage inputs (±1V, ±2.5 V), current input (±20 mA, requires 125 ohms resistor) and Thermocouple input (J, K, T, R, S, E, B). The module forwards the data to the host computer in engineering units (mV, V, mA or temperature °C). An external CJC on the plug-in terminal is designed for accurate temperature measurement.

Channels: 7 differential

Effective resolution: 16-bit

lnput type: mV, V, mA, Thermocouple

Isolation voltage: 3000 VDC

Sampling rate: 10 samples/sec. (total)

Accuracy: ±0.1% or better

Fault and overvoltage protection: withstands overvoltage up to ±35 V

Current Input		±20 mA
Current Output		-
Input Channel		7
Output Channel		-
Input Resolution		16 bit
Output Resolution		-
Input Sampling Rate		10 (total*)
Voltage Input		±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
Voltage Output		-
Isolation		3,000 VDC
