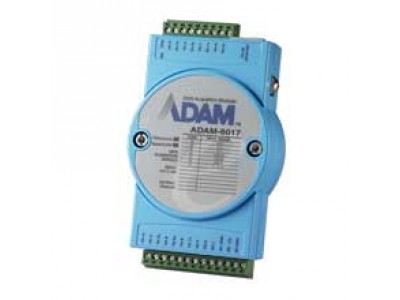

8-Channel Isolated Analog Input Modbus® TCP Module with 2-Channel Digtal Output (ADAM-6017-BE)
by Advantech
•Part #: ADAM-6017-BE
View Detailed Description
The ADAM-6017 is designed with 8 analog inputs and 2 digital outputs to satisfy all plant needs. Each analog channel is allowed to configure an individual range for variety of applications.
| Channels | 8 differential | |
| Voltage Range | ±150 mV ±500 mV ±1 V ±5 V ±10 V | |
| Current Input | 0~20 mA, 4~20mA | |
| Channel Independent Configuration | Yes | |
| Sampling Rates | 10 samples/second | |
| Resolution | 16-bit | |
| Input Impedance | Voltage: >10 MOhm Current: 120 Ohm | |
| Span Drift | ±25 ppm/°C | |
| Zero Drift | ±6 µV/°C | |
| CMR @ 50/60 Hz | 90 dB | |
| NMR @ 50/60 Hz | 60 dB | |
| Channels | 2 Open collector to 30V, 100 mA max. load | |
| Power Dissipation | 300 mW for each module | |
| LED Indicators | Status, Comm, Link, Speed | |
| Watchdog Timer | System (1.6 second) & Communication (programmable) | |
| Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) | |
| Temperature (Operating) | -10 ~ 70° C (14 ~ 158° F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -20 ~ 80° C (-4 ~176° F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | Yes | |
| GCL | Yes | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Power Requirement | 10~30 VDC |
