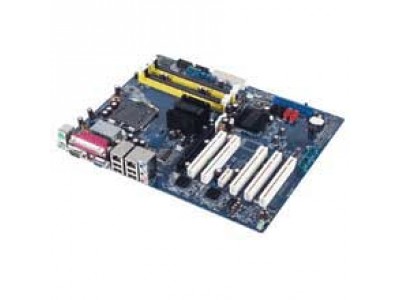

Pentium 4 ATX IMB FSB 800,VGA,GbE,2COM (AIMB-763VG-00A1E)
by Advantech
•Part #: AIMB-763VG-00A1E
View Detailed Description
| EMC | CE, FCC | |
| Controller | Intel GMA 950 Integrated | |
| Graphic Memory | Share with system memory up to 224 MB | |
| Multiple Display | - | |
| Display Interface | VGA: Up to 2048 x 1536 | |
| Controller | LAN1: Intel 82573L LAN2: Intel 82573L | |
| Speed | 10/100/1000 Base-T | |
| Connector | 2 x RJ45 | |
| PCI Express x 16 | 1 | |
| PCI Express x 4 | - | |
| PCI Express x 1 | 1 | |
| PCI | 5 | |
| LPC | 1 | |
| Form Factor | ATX | |
| SATA | 4 x SATA II | |
| USB3.0 | - | |
| USB2.0 | 4 | |
| GPIO | - | |
| LPT | - | |
| COM Port | 3 (2 x RS232, 1 x RS232/422/485) | |
| PS/2 Keyboard/Mouse | - | |
| SPDIF | - | |
| System Fan | 2 | |
| Software | - | |
| Technology | DDR2 533/667 MHz | |
| Capacity | Up to 4 GB | |
| ECC Support | - | |
| Socket | 4 x 240-pin UDIMM | |
| COM | 1 (1 x RS232) | |
| Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") | |
| CPU | Intel Core 2 Duo | |
| Frequency | Up to 3.8 GHz | |
| L2 Cache | 4MB/1MB/2MB/512KB | |
| L3 Cache | - | |
| BIOS | Award 8Mbit FWH | |
| Chipset | Intel 945G + ICH7R | |
| Integrated Graphics | Yes | |
| FSB | 533/800/1066 MHz | |
| Display | 1 | |
| USB3.0 | - | |
| USB2.0 | 4 | |
| PS/2 | 2(1 x keyboard and 1 x mouse) | |
| Audio | 3 (Mic-In, Line-Out, Line-In) | |
| LPT | 1 | |
| DVI | - | |
| Ethernet | 2 | |
| VGA | 1 | |
| Output | System Reset | |
| Interval | Programmable 1~255 sec |
Be the first to review this product!
