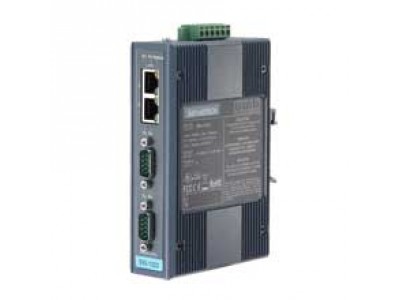

2 Port Modbus Data Gateway (EKI-1222-AE)
by Advantech
•Part #: EKI-1222-AE
View Detailed Description
The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking reliability. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network. The EKI-1221/1222/1224 provide a feature that can allow users to select master or slave operation mode for each serial port. They not only allow an Ethernet master to control serial slaves, but also allow serial masters to control Ethernet slaves.
- Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
- Integration of Modbus TCP and Modbus RTU/ASCII networks
- Supports baud rates up to 921.6 kbps
- Supports up to 16 connections and 32 requests simultaneously
- For the EKI-1222 with Daisy Chain capability, Click Here.
- Supports 31 slaves per serial port
- Auto searching slave ID over configuration utility
- Software selectable RS-232/422/485 communication
- Automatic RS-485 data flow control
| Connector | Serial | DB9 |
| Ethernet Connectors | RJ45 | |
| Ethernet | Ports | 2 |
| Interface | 10/100 Mbps | |
| Interface | Ports Number | 4 |
| Serial Communication | Ports | 2 |
| Type | RS-232/422/485 | |
| Software | Baud Rate | 50 ~ 921.6 Kbps |
| Operating Mode | Modbus RTU Master/Slave, Modbus ASCII Master/Slave | |
| Driver | Windows 2000/XP/Vista/7 (32-bit/64bit) |
