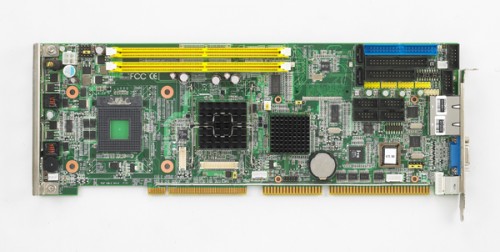

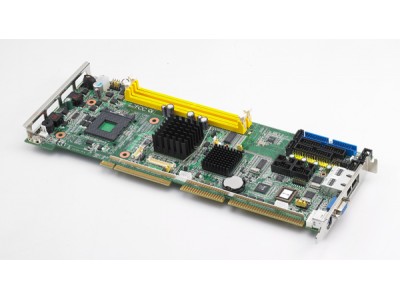

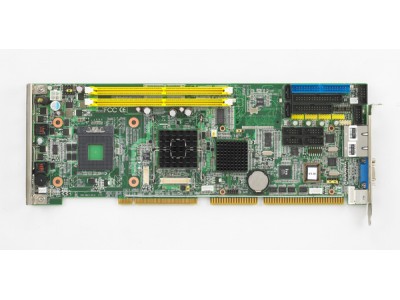

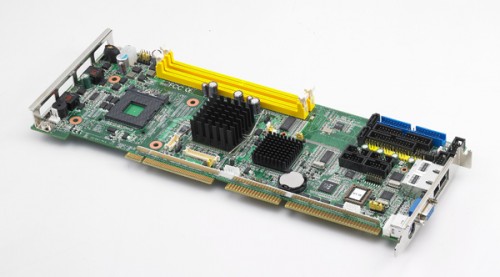

Socket 479 Intel Pentium M/ Celeron M Full-size Single Board Computer with VGA/ Dual Gigabit LAN/ PCI/ HISA,RoHS (PCA-6008G2-00A1E)
by Advantech
•Part #: PCA-6008G2-00A1E
View Detailed Description
- Supports Socket 479 Intel® Pentium® M/ Celeron® M FSB 533/400 MHz processors up to 2.26GHz / 1.7GHz
- Supports Dual Channel DDR2 533/400 SDRAM up to 2GB, 240-pin DIMM x 2
- Dual Gigabit Ethernet via two PCI Express X1 Link
- 2 SATA ports
- 6 COM ports; 8 USB 2.0 ports
- Two years limited warranty
| Certification | EMC | CE, FCC |
| Display | Controller | Intel GMA 950 Integrated |
| Graphic Memory | Shared with system memory up to 224MB | |
| Multiple Display | - | |
| Display Interface | VGA: Up to 2048 x 1536 | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Non-Operating Vibration | 2 Grms | |
| Ethernet | Controller | LAN1: RTL8111B LAN2: RTL8111B |
| Speed | 10/100/1000 Mbps | |

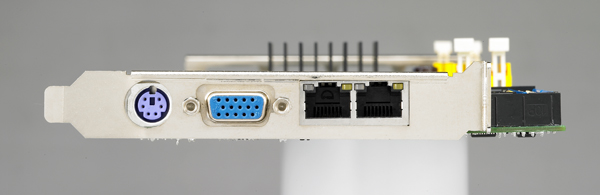

| Connector | 2 x RJ45 | |
| Expansion Interface | PCI | 1 |
| ISA | 1 | |
| LPC | 1 | |
| SMBus | 1 | |
| I2C Bus | 1 | |
| Form Factor | Form Factor | PICMG1.0 |
| I/O | COM | - |
| COM Port | 4 (1 x RS485, 3 x RS232) | |
| Ethernet | 2 | |
| Compact Flash | - | |
| Floppy | - | |
| GPIO | - | |
| IDE | 1 | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SATA | 4 x SATA II (Raid 0, 1, 5, 10) | |
| System Fan | 1 | |
| USB2.0 | 8 | |
| VGA | 1 | |
| Memory | Technology | DDR2 400/533/667 |
| Capacity | Up to 4GB | |
| Socket | 2 x 240-pin DIMM | |
| Physical Characteristics | Dimensions (LxW) | 338 x 122 mm (13.3" x 4.8") |
| Weight | 0.5 kg | |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V |
| Current | 3.09A/4.26A/0A/0.42A/0A/0A | |
| Processor System | CPU | Intel Pentium M 2.26GHz Intel Celeron M 1.7GHz |
| CPU TDP | Up to 95 W | |
| Frequency | Up to 2.26 GHz | |
| Core Number | 1 | |
| L2 Cache | 2MB | |
| BIOS | Award 4 MBit | |
| Chipset | Intel 945GC + ICH7/7R | |
| Integrated Graphics | - | |
| FSB | 533/400 MHz | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1~255 sec |
