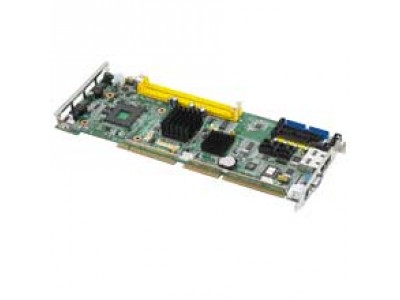

Fanless Intel Celeron M 600MHz Full-size Single Board Computer with VGA/ Single Gigabit LAN/ PCI/ HISA,RoHS (PCA-6008VG-06A1E)
by Advantech
•Part #: PCA-6008VG-06A1E
View Detailed Description
- Onboard Fanless Ultra Low Voltage Intel® Celeron® M Processor at 600 MHz
- Supports Dual Channel DDR2 533/400 SDRAM up to 2GB, 240-pin DIMM x 2
- Single Gigabit Ethernet via PCI Express X1 Link
- 2 SATA ports
- 2 COM ports; 4 USB 2.0 ports
- Two years limited warranty
| Certification | EMC | CE, FCC |
| Display | Controller | Intel GMA 900 Integrated |
| Graphic Memory | Shared with system memory up to 128MB | |
| Multiple Display | - | |
| Display Interface | VGA: Up to 2048 x 1536 | |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40~ 85° C and 60° C @ 95% RH Non-Condensing | |
| Non-Operating Vibration | 2 Grms | |
| Ethernet | Controller | LAN1: RTL8111B |
| Speed | 10/100/1000 Mbps | |
| Connector | 1 x RJ45 | |
| Expansion Interface | PCI | 1 |
| ISA | 1 | |
| LPC | 1 | |
| SMBus | 1 | |
| I2C Bus | 1 | |
| Form Factor | Form Factor | PICMG1.0 |
| I/O | COM | - |
| COM Port | 6 (1 x RS485, 5 x RS232) | |
| Ethernet | 1 | |
| Compact Flash | - | |
| Floppy | - | |
| GPIO | - | |
| IDE | 1 | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SATA | 2 x SATA II | |
| System Fan | 1 | |
| USB2.0 | 4 | |
| VGA | 1 | |
| Memory | Technology | DDR2 400/533 MHz |
| Capacity | Up to 2GB | |
| Socket | 2 x 240-pin DIMM | |
| Physical Characteristics | Dimensions (LxW) | 338 x 122 mm (13.3" x 4.8") |
| Weight | 0.5 kg | |
| Power Requirement | Voltage | +12 V/+5 V/+3.3 V/+5 VSB/-12 V/-5 V |
| Current | 0.56A/3.66A/0A/0.07A/0A/0A | |
| Processor System | CPU | Intel Celeron M 600MHz |
| CPU TDP | Up to 95 W | |
| Frequency | 600MHz | |
| Core Number | 1 | |
| L2 Cache | 512KB | |
| BIOS | Award 4 MBit | |
| Chipset | Intel 915GME + ICH6M | |
| Integrated Graphics | - | |
| FSB | 400 MHz | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1~255 sec |
