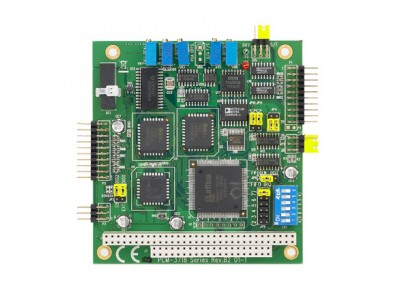

PC/104 16-ch 100kHz Multifunction Card with AO (PCM-3718HO-BE)
by Advantech
•Part #: PCM-3718HO-BE
View Detailed Description
$260.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.

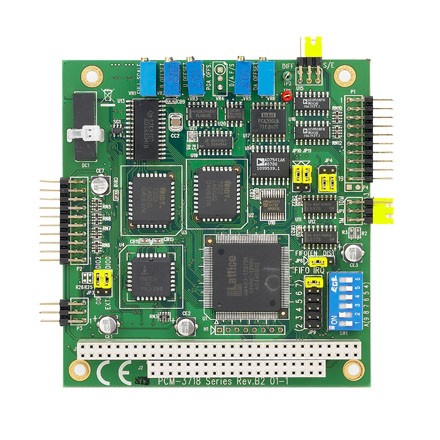

PCM-3718HO is a fully multifunctional card with PC/104 interface, 16 analog inputs, one analog output, two 8-bit digital I/O channels, and a free counter function. Such a broad range of functions available in a single PC/104 card is a significant breakthrough, and will be appreciated by embedded systems developers with demanding space requirements. Using the compact PC/104 form factor, the card enables better integration and can be fitted in smaller systems such as embedded industrial PC like UNO-2170 or UNO-2171.
- 16 x single-ended or 8 x differential analog inputs
- 12-bit A/D converter, up to 100 KHz sampling rate with DMA transfer
- 1 x 12-bit digital input/output TTL level channels
| Analog Input | Resolution | 12 bits |
| Unipolar Input (V) | 0 ~ 10, 0 ~ 5, 0 ~ 2.5, 0 ~ 0.125 | |
| Bipolar Inputs (V) | ±10, 5, 2.5, 1.25, 0.625 | |
| No-Name | 16 S.E./8 Diff | |
| Analog Output | Channels | 1 |
| Resolution | 12 bits | |
| Digital I/O | Digital Input Channels | 16 (shared) |
| Digital Output Channels | 16 (shared) | |
| General | No-Name | PC/104 |
| Timer/Counter | Resolution | 16 bits |
| Time Base | 10 MHz |
