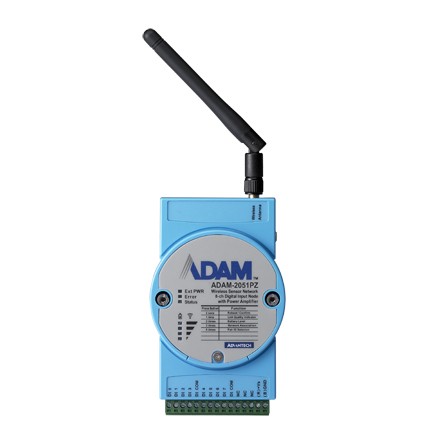

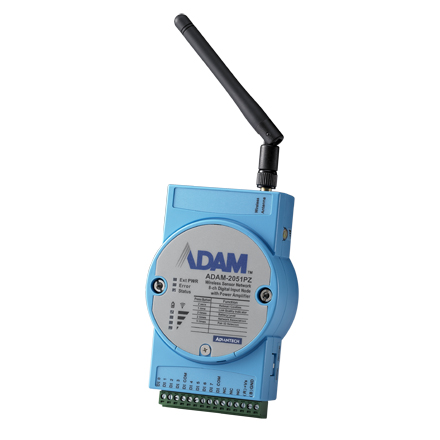

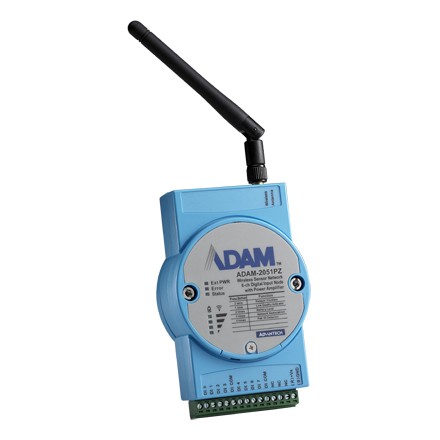

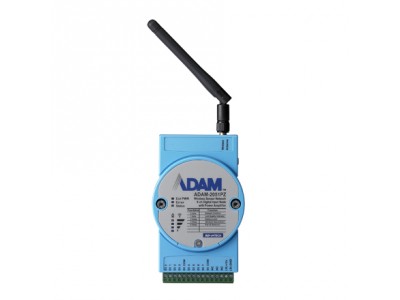

Wireless 8-ch Digital Input Node with Power Amplifier (ADAM-2051PZ-AE)

by Advantech

Part #: ADAM-2051PZ-AE

View Detailed Description


Call for Availability

Wireless 8-ch Digital Input Node with Power Amplifier

  • 2.4 GHz IEEE 802.15.4 compliant RF
  • Low duty cycle and low power consumption
  • With high RF output power
  • Outdoor range up to 1,000 m
  • Supports battery input with 2 x AA alkaline batteries
  • 10K Ω input resistance
Digital InputChannles8
Input VoltageDry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~0.8 VDC max. Logic level 1: 2~5 VDC
DisplayLED IndicatorsExt PWR, Error, Status, Level Index
GeneralConnector1 x plug-in terminal block (#14~22 AWG)
Temperature (Operating)External power: -20~70 °C (-4~158 °F) Battery power: 0~50 °C (32~122 °F)
Humidity20~95 %RH
Temperature (Storage)-40~85 °C (-40~184 °F)
Power SupplyPower RequirementPower Input: Unregulated 10~30 VDC Battery Input: 2 x AA Alkaline 3 VDC
Wireless NetworkIEEE Standard802.15.4
Frequency BandISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz)
Channels11 - 26
TopologyStar / Tree / Mesh
Transmit Power19±1 dBm
Outdoor Range1000 m
Modulation TypeDSSS (OQPSK)
Receiver Sensitivity-97 dBm
RF Data Rate250 kbps
FunctionEnd Device
