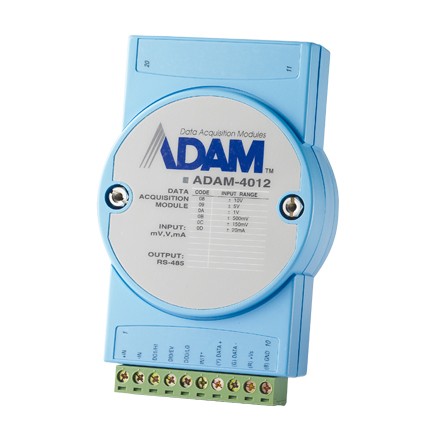

1-Channel Analog Input Module (ADAM-4012-DE)

by Advantech

Part #: ADAM-4012-DE

View Detailed Description


Call for Availability

Analog input modules use a microprocessor-controlled integrating A/D converter to convert sensor voltage, or current signals into digital data. The digital data is then translated into either engineering units, twos complement hexadecimal format or percentage of full-scale range (FSR)according to the module ’s configuration. When prompted by the host computer, the data is sent through a standard RS-485 interface. The Analog Input Modules offer signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V DC .

  • Rugged Analog Input Module with 1 x Analog Input, 1 x Digital Input, 2 x Digital Output
  • Input type: mV, V or mA
  • Power Consumption 1.2 W @ 24 VDC
  • Supported Protocols ASCII command
Analog InputChannels1 differential
Voltage Range±150 mV ±500 mV ±1 V ±5 V ±10 V
Current Input±20 mA
Sampling Rates10 samples/second
Resolution 16-bit
Input ImpedanceVoltage: 20 MOhm Current: 125 Ohm
Span Drift±25 ppm/°C
Zero Drift±6 µV/°C
CMR @ 50/60 Hz150 dB
NMR @ 50/60 Hz100 dB
Digital InputChannles1
Input VoltageLogic level 0: 1 V max. Logic level 1: 3.5~30 V
Digital OutputChannels2 Open collector to 30V, 30 mA max. load
Power Dissipation300 mW
DisplayLED IndicatorsPower
GeneralWatchdog TimerSystem (1.6 second)
Connector1 x plug-in terminal block (#14~22 AWG)
Temperature (Operating)-10~70 °C (14~158 °F)
Humidity5~95 %RH
Temperature (Storage)-25~85 °C (-13~185 °F)
Isolation Protection3000 VDC
Communication ProtocolASCII command
Communication SpeedSerial: From 1,200 to 115.2 k
Comm. DistanceSerial: 1.2 km
Data Flow ControlYes
Power SupplyPower Requirement10~30 VDC
