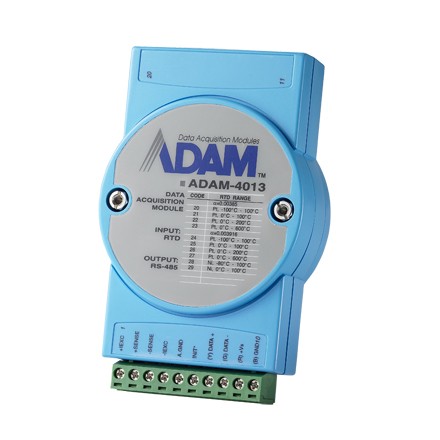

1-Channel RTD Input Module (ADAM-4013-DE)

by Advantech

Part #: ADAM-4013-DE

View Detailed Description


Call for Availability

Analog input modules use a microprocessor-controlled integrating A/D converter to convert sensor voltage, current, or RTD signals into digital data. The digital data is then translated into either engineering units, twos complement hexadecimal format or percentage of full-scale range (FSR)according to the module ’s configuration. When prompted by the host computer, the data is sent through a standard RS-485 interface. The Analog Input Modules offer signal conditioning, A/D conversion, ranging, and RS-485 digital communication functions. They protect your equipment from ground loops and power surges by providing opto-isolation of the A/D input and transformer based isolation up to 3000 V DC .

  • Built-in Watchdog Timer
  • Isolation Voltage 3000 VDC
  • Sampling Rate 10 sample/sec
  • Accuracy +/- 0.1% or better
Analog Input Channels 1 (2, 3, or 4-wired)
Direct Sensor Input RTD (Pt, or Ni)
Sampling Rates 10 samples/second
Resolution 16-bit
Input Impedance 2 MOhm
Span Drift ±25 ppm/°C
Zero Drift ±3 µV/°C
CMR @ 50/60 Hz 150 dB
NMR @ 50/60 Hz 100 dB
Display LED Indicators Power
General Watchdog Timer System (1.6 second)
Connector 1 x plug-in terminal block (#14~22 AWG)
Temperature (Operating) -10~70 °C (14~158 °F)
Humidity 5~95 %RH
Temperature (Storage) -25~85 °C (-13~185 °F)
Interface RS-485
Isolation Protection 3000 VDC
Communication Protocol ASCII command
Communication Speed Serial: From 1,200 to 115.2 k
Comm. Distance Serial: 1.2 km
Data Flow Control Yes
Power Supply Power Requirement 10~30 VDC
