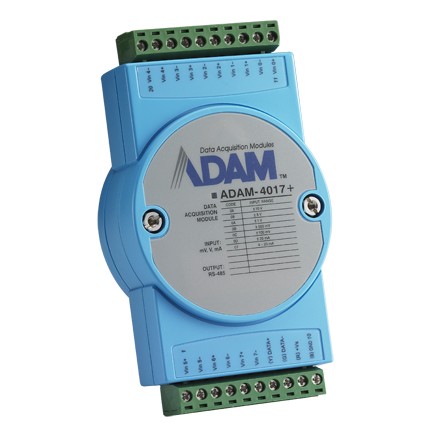

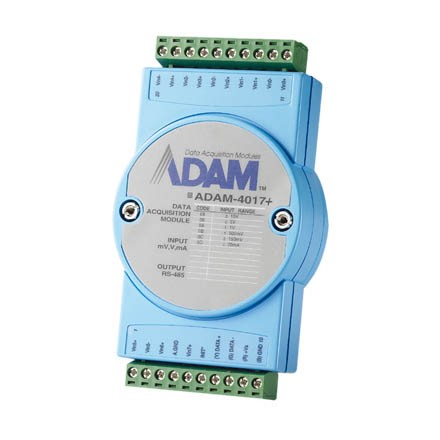

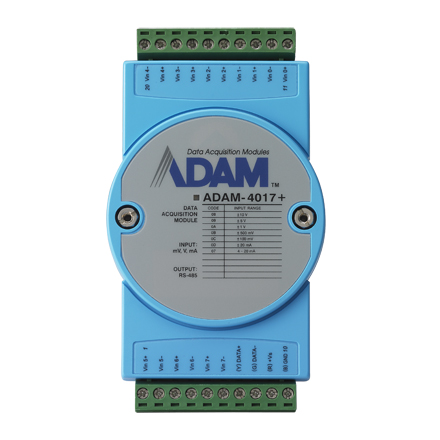

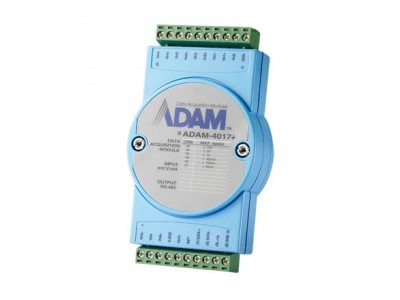

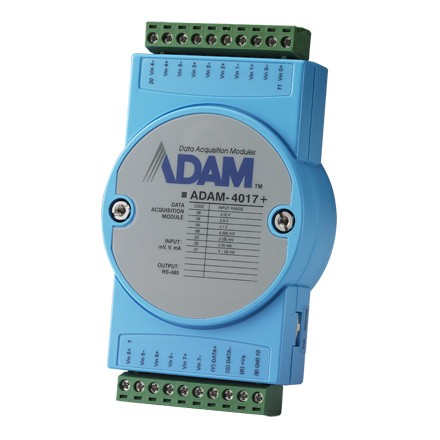

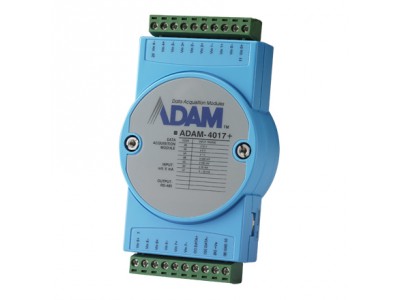

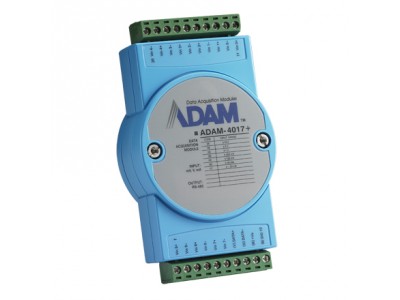

8-Channel Analog Input Module with Modbus (ADAM-4017+-CE)
by Advantech
•Part #: ADAM-4017+-CE
View Detailed Description
$270.00
Qty:
Where's the special price?
We set our prices independently and because our price on this item is lower than the manufacturer allows us to show you (MAP - Minimum Advertised Price), you will need to place the item in your shopping cart to see the special price. You are not required to purchase this item.
The ADAM-4017+ is a 16-bit, 8-channel analog input module that provides programmable input ranges on all channels. These modules are an extremely cost-effective solution for industrial measurement and monitoring applications. 3000 VDC optical isolation between the analog input and the modules protects the modules and peripherals from damages caused by high input voltages.
- 16-bit resolution
- Eight different inputs
- Software configurable for mV, V or mA inputs
- 3000 Vdc isolation
- Supports Modbus/RTU Protocol
- Supports 4~20mA
Analog Input | Channels | 8 differential |
Voltage Range | ±150 mV ±500 mV ±1 V ±5 V ±10 V | |
Current Input | ±20 mA, 4~20mA | |
Channel Independent Configuration | Yes | |
Sampling Rates | 10 samples/second | |
Resolution | 16-bit | |
Input Impedance | Voltage: 20 MOhm Current: 120 Ohm | |
Span Drift | ±25 ppm/°C | |
Zero Drift | ±6 µV/°C | |
CMR @ 50/60 Hz | 120 dB | |
NMR @ 50/60 Hz | 100 dB | |
Display | LED Indicators | Power |
General | Watchdog Timer | System (1.6 second) & Communication |
Connector | 2 x plug-in terminal block (#14~22 AWG) | |
Temperature (Operating) | -10~70 °C (14~158 °F) | |
Humidity | 5~95 %RH | |
Temperature (Storage) | -25~85 °C (-13~185 °F) | |
Interface | RS-485 | |
Isolation Protection | 3000 VDC | |
Communication Protocol | ASCII command & Modbus/RTU | |
Communication Speed | Serial: From 1,200 to 115.2 k | |
Comm. Distance | Serial: 1.2 km | |
Data Flow Control | Yes | |
Power Supply | Power Requirement | 10~30 VDC |
