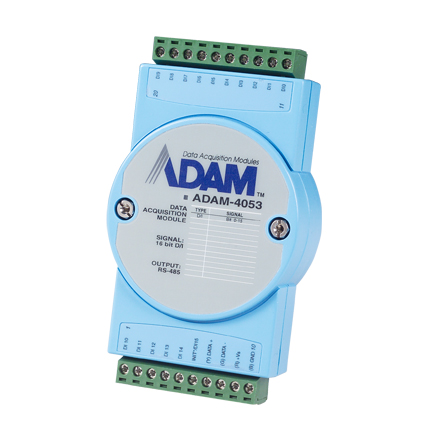

16-Channel Isolated Digital Input Module (ADAM-4053-AE)

by Advantech

Part #: ADAM-4053-AE


View Detailed Description

$125.00

Call for Availability

The ADAM-4053 provides 16 digital input channels for dry contact or wet contact signals. For dry contact, effective distance from DI to contact point is up to 500 m.

  • 16 input channels
  • Connectors 2 x plug-in terminal blocks (#14 ~ 22 AWG)
  • Power Consumption 1 W @ 24 VDC
  • Watchdog Timer
Digital InputChannles16
Input VoltageDry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 2 VDC max. Logic level 1: 4~30 VDC
DisplayLED IndicatorsPower
GeneralWatchdog TimerSystem (1.6 second)
Connector2 x plug-in terminal block (#14~22 AWG)
Temperature (Operating)-10~70 °C (14~158 °F)
Humidity5~95 %RH
Temperature (Storage)-25~85 °C (-13~185 °F)
InterfaceRS-485
Communication ProtocolASCII command
Communication SpeedSerial: From 1,200 to 115.2 k
Comm. DistanceSerial: 1.2 km
Data Flow ControlYes
Power SupplyPower Requirement10~30 VDC
