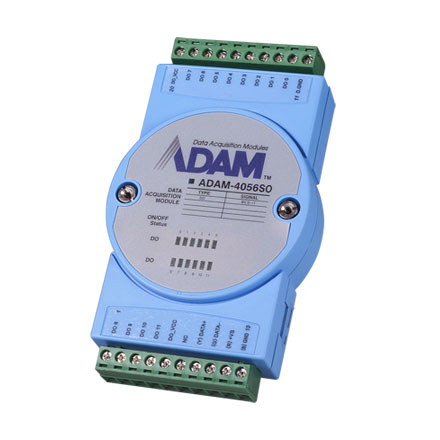

12-Channel Source Type Isolated Digtal Output Module with Modbus (ADAM-4056SO-AE)
by Advantech
•Part #: ADAM-4056SO-AE
View Detailed Description
$155.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
12-channel Source Type Isolated Digital Output Module
- DO Source Power Failure Detection
- I/O Type: Source Type Output
- 12 Channels
- Digital Output: VCC: 1-~35 Vdc, Current: 1A (per ch.)
- Over Current Detection
| Digital Output | Channels | 12 (Source type) VCC: 10~35 VDC, Current: 1 A (per channel) Over current detection and protection |
| Display | LED Indicators | Power, DO |
| General | Watchdog Timer | System (1.6 second) & Communication |
| Connector | 2 x plug-in terminal block (#14~22 AWG) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -25~85 °C (-13~185 °F) | |
| Interface | RS-485 | |
| Isolation Protection | 5,000 VDC | |
| Communication Protocol | ASCII command & Modbus/RTU | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | 10~30 VDC |
