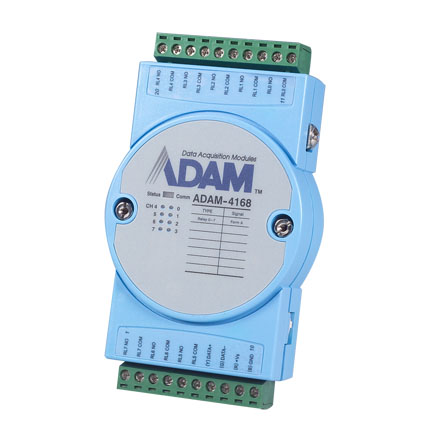

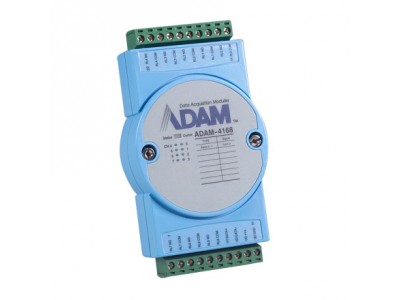

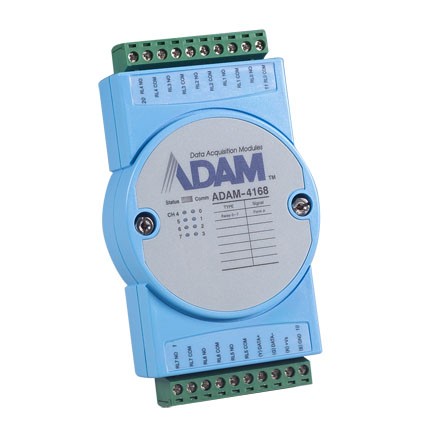

Robust 8-Channel Relay Output Module with Modbus (ADAM-4168-AE)
by Advantech
•Part #: ADAM-4168-AE
View Detailed Description
$165.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
Robust 8-ch Relay Output Module with Modbus
- 8 Form A output channels
- Broader Operating Temperature Range
- Higher Noise Immunity: 1 kV surge protection on power inputs, 3 kV EFT, and 8 kV ESD Protection
- Broader Power Input Range: +10 ~ +48 VDC
- LED display allows to monitor the status address settings
- DO channels support pulse output function
| Digital Output | Channels | 8-ch relay Support 100 Hz pulse output |
| Display | LED Indicators | Status, Comm, and Relay |
| General | Watchdog Timer | System (1.6 second) & Communication |
| Connector | 2 x plug-in terminal block (#14~22 AWG) | |
| Temperature (Operating) | -40~85°C (40~185 °F) | |
| Humidity | 5~95 %RH | |
| Temperature (Storage) | -40~85°C (40~185 °F) | |
| Interface | RS-485 | |
| Isolation Protection | 3000 VDC | |
| Communication Protocol | ASCII command & Modbus/RTU | |
| Communication Speed | Serial: From 1,200 to 115.2 k | |
| Comm. Distance | Serial: 1.2 km | |
| Data Flow Control | Yes | |
| Power Supply | Power Requirement | 10~48 VDC |
