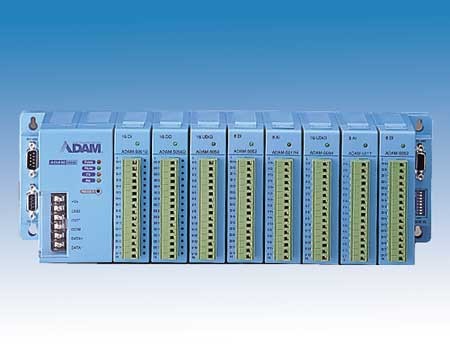

8-slot Distributed DA&C System Based on RS-485 (ADAM-5000E-AE)

by Advantech

Part #: ADAM-5000E-AE


View Detailed Description

$395.00

Call for Availability

The ADAM-5000/485 and ADAM-5000E systems conform to the EIA RS-485 communication standard. This is the industry's most widely used, balanced, bidirectional transmission line standard. RS-485 was specifically developed for industrial applications to transmit and receive data at high rates over long distances.

  • RS-485 Communication for easy installation and networking
  • 4 or 8 slots for up to 128 points data monitoring card control in one module
  • Extensive software support; Windows DLL, OCX, OPC server and popular HMI/SCADA software drivers
  • Seamlessly integrated with easy-to-use ADAMView data acquisition software
  • Supports ADAM ASCII protocol or Modbus®/RTU protocol
  • Supports Modbus/RTU protocol with user-defined Modbus address
CommunicationsProtocolsASCII command/response protocol, Modbus/RTU
CommunicationRS-485: 1.2 km (4000 feet)
Max. Nodes128 (in RS-485 daisy-chain network)
Data FormatAsynchronous. 1 start bit, 8 data bits, 1 stop bit, no parity
Network ProtocolsProgramming link: RS-232 (3-wire: TX, RX, GND), Communication: RS-485 (2-wire)
Reliability CheckCommunication error checking with checksum
Speeds (kbps)1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, and 115.2
Control SystemCPU16-bit 80188 microprocessor
LED IndicatorsPower, CPU, communications
Watchdog Timer1.6 sec. (System)
I/O Slots8
EnvironmentOperating Temperature-10 ~ 70°C
Storage Temperature-25 ~ 85°C
Humidity5 ~ 95%, non-condensing
GeneralMountingDIN-rail, wall, rack (with mounting kit)
CertificationsCE, FM
Dimensions (W x H x D)355 x 110 x 75 mm
EnclosureABS+PC
Connectors1 x DB9-M/DB9-F/screw terminal for RS-485 (communication), 1 x DB9-F for RS-232 (configuration), 1 x Screw-terminal for power input
PowerPower Consumption4.0 W @ 24 VDC (not including I/O modules)
Power InputUnregulated 10 ~ 30 VDC
Protection Power ReversalYes
Communication Line Isolation3,000 VDC
I/O Module Isolation3,000 VDC
Transient ProtectionRS-485 communication lines, power input
