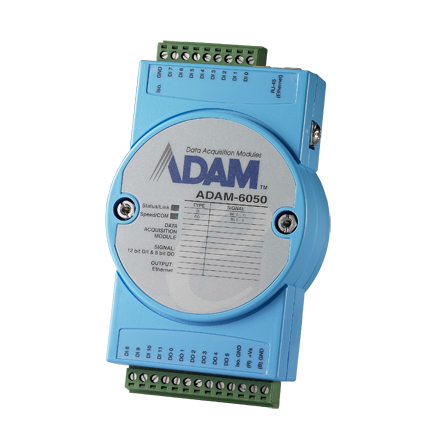

18-Channel Isolated Digital I/O Modbus TCP Module (ADAM-6050-CE)
by Advantech
•Part #: ADAM-6050-CE
View Detailed Description
$195.00
ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.
- Provide default/customized web page
- Support Dry/Wet contact
- 10/100 Mbps communication rate
- I/O Type: 12 DI & 6 DO
| Digital Input | Channels | 12 |
| Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 3 VDC max. Logic level 1: 10~30 VDC | |
| Digital Output | Channels | 6 (Sink type) Open collector to 30V, 100 mA max. load Support 5 kHz pulse output |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Description | 18-ch Isolated Digital I/O Modbus TCP Module |
| Watchdog Timer | System (1.6 second) & Communication (programmable) | |
| Connector | 1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power) | |
| Temperature (Operating) | -20 ~ 70°C (-4 ~ 158°F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -30 ~ 80°C (-22 ~ 176°F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | Yes | |
| GCL | Yes | |
| Isolation Protection | 2000 VDC | |
| Communication Protocol | Modbus/TCP, TCP/IP, UDP, and HTTP | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Power Supply | Power Requirement | 10~30 VDC |
