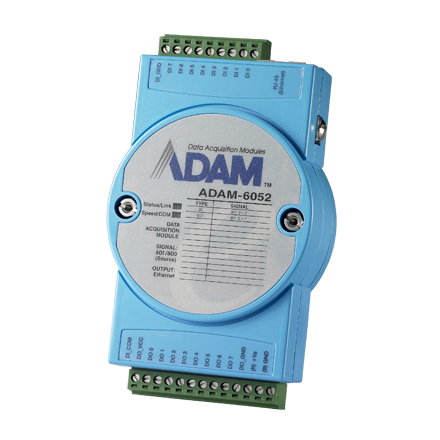

16-Channel Source Type Isolated Digtal I/O Modbus TCP Module (ADAM-6052-CE)

by Advantech

Part #: ADAM-6052-CE


View Detailed Description

$210.00

Qty:

ADAM-6000 accomplishes the integration of automation and enterprise systems easily through internet technology, so that users can avoid changing the entire architecture of the control system and even remotely monitor the device status more flexibly. ADAM-6000 modules are empowered by peer-to-peer (P2P) and Graphic Condition Logic (GCL), and can perform as standalone products for measurement, control and automation. Instead of having additional controllers or programming, system configurations can be done in an extremely short time with the easy-to-use and intuitive graphic utility.

  • 8 Channel
  • 8 DI/8 DO
  • VDC: 35 V
  • Optical Isolation: 2000 Vrms
  • Supports 5 kHz Pulse Output
  • Supports High-to-Low and Low-to-High Delay Output
  • Supports Over Current Protection
Digital I/OFrequency InputDI counters (32-bit + 1-bit overflow, 3kHz max.)
Digital InputInput VoltageDry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC
Channels8
Digital OutputChannels8 (Source type) 10~35 VDC, 1 A per ch. Support 5 kHz pulse output
DisplayLED IndicatorsStatus, Comm, Link, Speed
GeneralWatchdog TimerSystem (1.6 second) & Communication (programmable)
Temperature (Operating)-20 ~ 70°C (-4 ~ 158°F)
Humidity20~95 %RH
Temperature (Storage)-30 ~ 80°C (-22 ~ 176°F)
Interface10/100Base-T(X)
Peer-to-PeerYes
GCLYes
Isolation Protection2000 VDC
Communication ProtocolModbus/TCP, TCP/IP, UDP, and HTTP
Communication SpeedEthernet: 10/100Mbps
Comm. DistanceEthernet: 100 m
Connector1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power)
Power SupplyPower Requirement10~30 VDC
