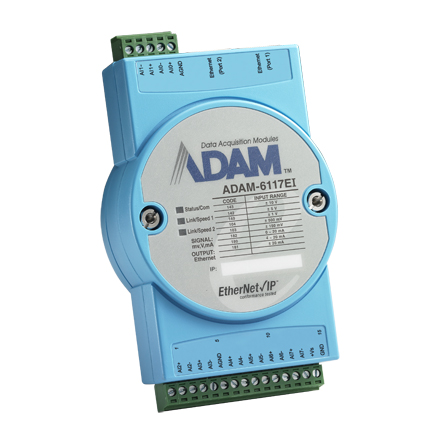

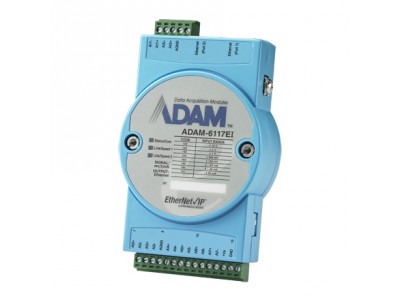

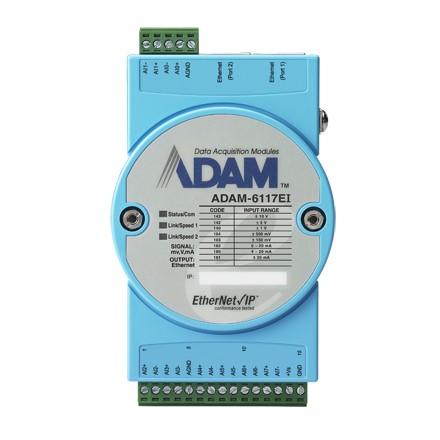

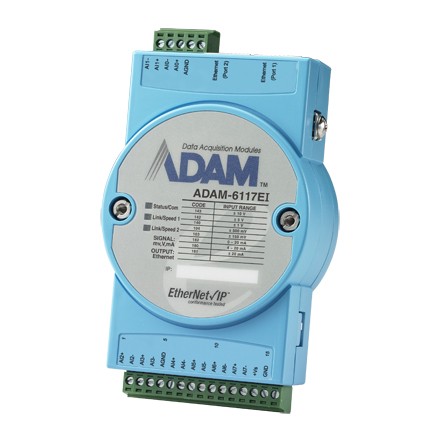

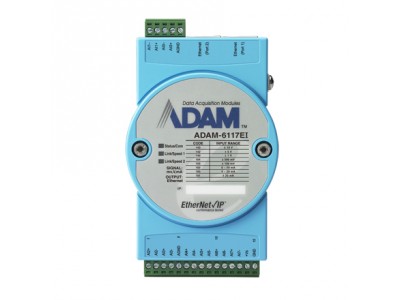

8-Channel Isolated Analog Input Real-Time EtherNet/IP Module (ADAM-6117EI-AE)

by Advantech

Part #: ADAM-6117EI-AE


View Detailed Description

$490.00

Qty:

Advantech’s ADAM-6100 series is a new line of Industrial Ethernet Remote I/O modules. Designed with 2,500 VDC isolation protections, ADAM-6117EI, 8-ch Isolated Analog Input EtherNet/IP Module, is very resistant to field interference. It is also equipped with the EtherNet/IP protocol, and allows daisy chain connections, making it possible to transfer data much faster during process control and other industrial automation applications. Daisy chain connectivity provides a more scalable system with fewer wires to help avoid interference common in factory settings. More importantly, Advantech’s ADAM.NET Utility comes bundled with each ADAM-6100 module, allowing users to configure, set, and test ADAM-6100 modules through Ethernet.

  • Equipped specifically for the EtherNet/IP protocol
  • High common mode voltage 200 VDC
  • Isolation Protection: 2,500 VDC
  • 2 x RJ-45 LAN (daisy chain)
Analog InputChannels8 differential
Voltage Range±150 mV ±500 mV ±1 V ±5 V ±10 V
Current Input±20 mA 0~ 20 mA 4~20 mA
Channel Independent ConfigurationYes
Sampling Rates12 sample/second (total)
Resolution 16-bit
Input ImpedanceVoltage: >10 MOhm Current: 120 Ohm
Span Drift± 30 ppm/°C
Zero Drift± 6 µV/° C
CMR @ 50/60 Hz92 dB
NMR @ 50/60 Hz60 dB
High Common Mode200 VDC
DisplayLED IndicatorsStatus, Comm, Link, Speed
GeneralWatchdog TimerSystem (1.6 second) & Communication (programmable)
Connector2 x RJ-45 (LAN, Daisy Chain) & 2 x plug-in terminal block (I/O and power)
Temperature (Operating)-10~70 °C (14~158 °F)
Humidity20~95 %RH
Temperature (Storage)-20~80 °C (-4~176 °F)
Interface10/100Base-T(X)
Peer-to-PeerNo
GCLNo
Isolation Protection2500 VDC
Communication ProtocolEtherNet/IP
Communication SpeedEthernet: 10/100Mbps
Comm. DistanceEthernet: 100 m
Power SupplyPower Requirement10~30 VDC
