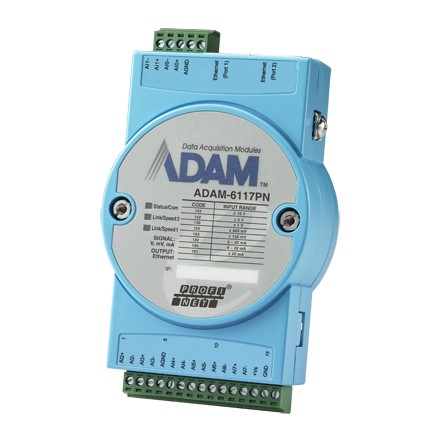

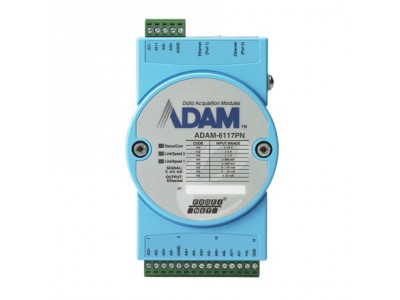

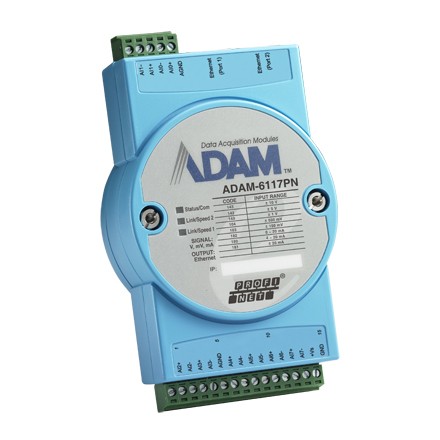

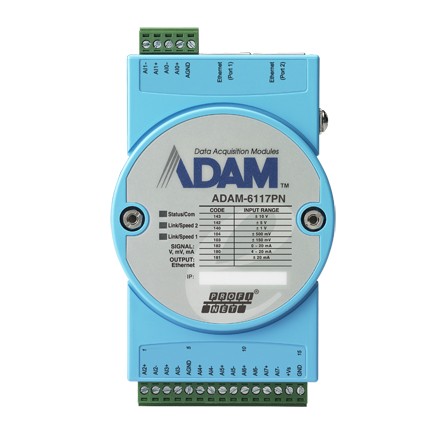

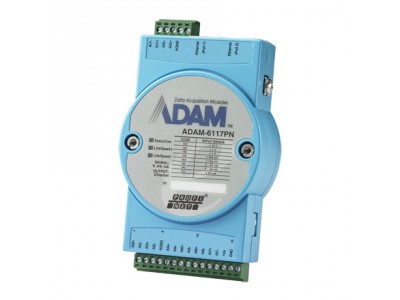

8-Channel Isolated AI PROFINET Module (ADAM-6117PN-AE)
by Advantech
•Part #: ADAM-6117PN-AE
View Detailed Description
$490.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
8-ch Isolated Analog Input PROFINET Module
- PROFINET protocol
- High common mode voltage 200 VDC
- Isolation Protection: 2,500 VDC
- 2 x RJ-45 LAN (daisy chain)
| Analog Input | Channels | 8 differential |
| Voltage Range | ±150 mV ±500 mV ±1 V ±5 V ±10 V | |
| Current Input | ±20 mA 0~ 20 mA 4~20 mA | |
| Channel Independent Configuration | Yes | |
| Sampling Rates | 10 samples/second (total) | |
| Resolution | 16-bit | |
| Input Impedance | Voltage: >10 MOhm Current: 120 Ohm | |
| Span Drift | ± 30 ppm/°C | |
| Zero Drift | ± 6 µV/° C | |
| CMR @ 50/60 Hz | 92 dB | |
| NMR @ 50/60 Hz | 67dB | |
| High Common Mode | 200 VDC | |
| Display | LED Indicators | Status, Comm, Link, Speed |
| General | Watchdog Timer | System (1.6 second) & Communication (programmable) |
| Connector | 2 x RJ-45 (LAN, Daisy Chain) & 2 x plug-in terminal block (I/O and power) | |
| Temperature (Operating) | -10~70 °C (14~158 °F) | |
| Humidity | 20~95 %RH | |
| Temperature (Storage) | -20~80 °C (-4~176 °F) | |
| Interface | 10/100Base-T(X) | |
| Peer-to-Peer | No | |
| GCL | No | |
| Isolation Protection | 2500 VDC | |
| Communication Protocol | PROFINET | |
| Communication Speed | Ethernet: 10/100Mbps | |
| Comm. Distance | Ethernet: 100 m | |
| Power Supply | Power Requirement | 10~30 VDC |
