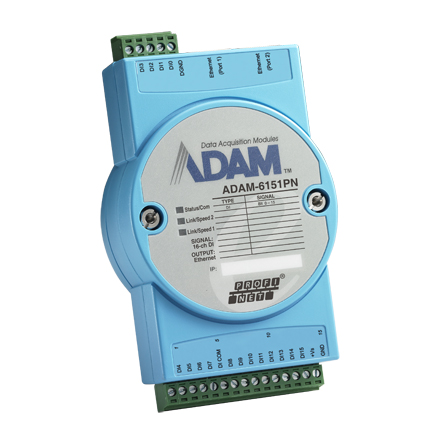

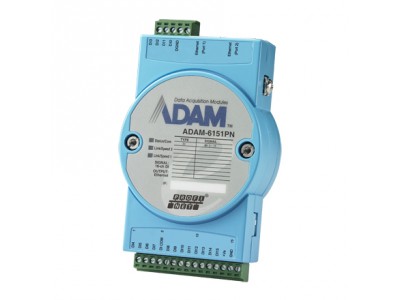

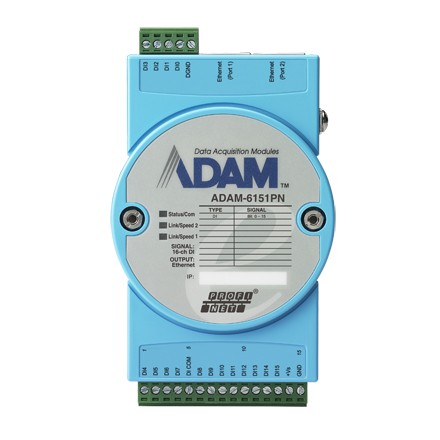

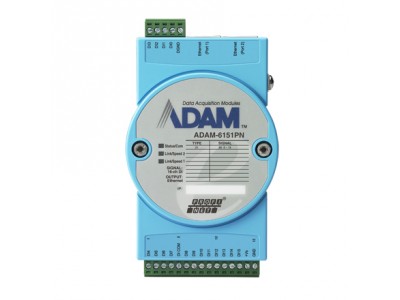

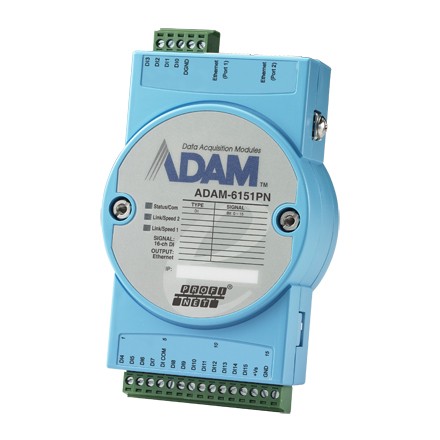

16-Channel Isolated DI PROFINET Module (ADAM-6151PN-AE)

by Advantech

Part #: ADAM-6151PN-AE


View Detailed Description

$330.00

Call for Availability

16-ch Isolated Digital Input PROFINET Module

  • PROFINET protocol
  • 16-ch digital input
  • Normal output current: 0.1 A (per channel)
  • 2 x RJ-45 LAN (daisy chain)
Digital InputChannles16
Input VoltageDry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC
DisplayLED IndicatorsStatus, Comm, Link, Speed
GeneralWatchdog TimerSystem (1.6 second) & Communication (programmable)
Connector2 x RJ-45 (LAN, Daisy Chain) & 2 x plug-in terminal block (I/O and power)
Temperature (Operating)-10~70 °C (14~158 °F)
Humidity20~95 %RH
Temperature (Storage)-20~80 °C (-4~176 °F)
Interface10/100Base-T(X)
Peer-to-PeerNo
GCLNo
Isolation Protection2500 VDC
Communication ProtocolPROFINET
Communication SpeedEthernet: 10/100Mbps
Comm. DistanceEthernet: 100 m
Power SupplyPower Requirement10~30 VDC
