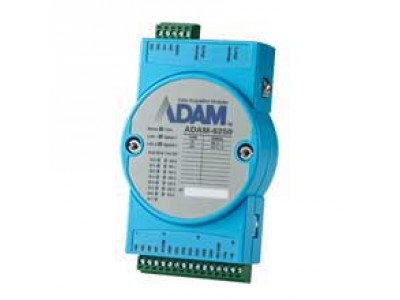

15-Channel Isolated Digital I/O Modbus TCP Module (ADAM-6250-AE)

by Advantech

Part #: ADAM-6250-AE


View Detailed Description

$210.00

Qty:

In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.

  • Daisy chain connection capability with auto-bypass protection, plus group configuration
  • Remote monitoring and control with smart phone/pad
  • Counter input: 3kHz (32 bit + 1 bit overflow)
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
  • Web language support: XML, HTML 5, Java Script
  • User Access Control and flexible user-defined Modbus address
  • System configuration backup
Digital InputInput VoltageDry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~0.8 VDC max. Logic level 1: 2~5 VDC
Channels8
Counter Input3kHz (32 bit + 1 bit overflow)
Dry ContactLogic 0: Open Logic 1: Closed to DGND
Frequency Input0.1 ~ 3kHz
Input Impedance5.2 kW (Wet Contact)
Keep/Discard Counter Value when power off-
Supports Inverted DI Status-
Transition Time0.2 ms
Wet ContactLogic 0: 0 ~ 3 VDC or 0 ~ -3 VDC Logic 1: 10 ~ 30 VDC or -10 ~ -30 VDC (Dry/Wet Contact decided by Switch)
Digital OutputChannels7 (Sink Type)
Delay OutputHigh-to-Low and Low-to-High
Normal Output Current100 mA (per channel)
Output Voltage Range10 ~ 30 VDC
Pulse OutputUp to 5kHz
EnvironmentHumidity (Operating)20 ~ 95% RH (non-condensing)
Operating Temperature-10 ~ 70°C (14 ~ 158°F)
Storage Humidity0 ~ 95% RH (non-condensing)
Storage Temperature-20 ~ 80°C (-4 ~ 176°F)
GeneralConnectorPlug-in 5P/15P screw terminal blocks
Dimensions110 x 60 x 27 mm
Ethernet2-port 10/100 Base-TX (for Daisy Chain)
LED Indicators8 DI + 7 DO
Power Consumption3 W @ 24 VDC
Power Input 10 - 30 VDC (24 VDC standard)
ProtectionBuilt-in TVS/ESD protection Power Reversal protection Over Voltage protection: +/- 35VDC Isolation protection: 2500 VDC
ProtocolModbus/TCP, TCP/IP, UDP, HTTP, DHCP
Watchdog TimerSystem (1.6 seconds), Communication (Programmable)
