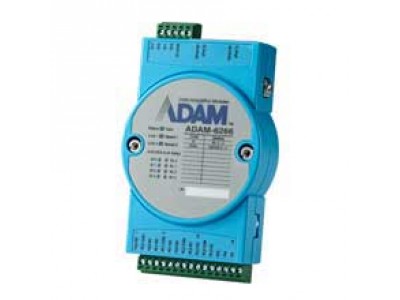

4-Channel Relay Output Modbus TCP Module with 4-Channel Digtal Input (ADAM-6266-AE)

by Advantech

Part #: ADAM-6266-AE


View Detailed Description

$210.00

Call for Availability

In order to fulfill ideal remote DAQ devices in IoT world, Advantech releases ADAM-6200 series, a new selection of Ethernet I/O family comprised of analog I/O, digital I/O and relay modules. ADAM-6200 series module possesses plenty of advanced features whatever the evolution of hardware design and what’s worth expecting for user is a variety of useful software functions to make it effective in the application field. With new design and strong capabilities, ADAM-6200 can be a well-integrated I/O solution in Ethernet control system.

  • Daisy chain connection capability with auto-bypass protection, plus group configuration
  • Remote monitoring and control with smart phone/pad
  • 4 Form C Relay, and 4 DI Channels
  • Intelligent control ability by Peer-to-Peer and GCL function
  • Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
  • Web language support: XML, HTML 5, Java Script
  • User Access Control and flexible user-defined Modbus address
  • System configuration backup
Digital InputChannels4
Counter Input3kHz (32 bit + 1 bit overflow)
Dry ContactLogic 0: Open, Logic 1: Closed to DI COM
Frequency Input0.1 ~ 3kHz
Input Impedance5.2 kW (Wet Contact)
Input VoltageDry contact: Logic level 0: close to GND Logic level 1: open Wet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDC
Keep/Discard Counter Value when power off-
Supports Inverted DI Status-
Transition Time0.2 ms
Wet ContactLogic 0: 0 ~ 3 VDC or 0 ~ -3 VDC, Logic 1: 10 ~ 30 VDC or -10 ~ -30 VDC, (Dry/Wet Contact decided by Switch)
EnvironmentHumidity (Operating)20 ~ 95% RH (non-condensing)
Operating Temperature-10 ~ 70°C (14 ~ 158°F)
Storage Humidity0 ~ 95% RH (non-condensing)
Storage Temperature-20 ~ 80°C (-4 ~ 176°F)
GeneralConnectorPlug-in 5P/15P screw terminal blocks
Dimensions110 x 60 x 27 mm
Ethernet2-port 10/100 Base-TX (for Daisy Chain)
LED Indicators4 RL + 4 DI
Power Consumption4.2 W @ 24 VDC
Power Input 10 - 30 VDC (24 VDC standard)
ProtectionBuilt-in TVS/ESD protection, Power Reversal protection, Over Voltage protection: +/- 35VDC, Isolation protection: 2500 VDC
ProtocolModbus/TCP, TCP/IP, UDP, HTTP, DHCP
Watchdog TimerSystem (1.6 second) & Communication (programmable)
Relay OutputBreakdown Voltage500 VAC (50/60Hz)
Channels4 Form C
Contact Rating250 VAC @ 5A 30 VDC @ 5A
Frequency of Operation360 operations/hour with load, 72,000 operations/hour without load
Insulation Resistance> 10 GΩ @ 500 VDC
Isolation between Contact1000 Vrms
Max. Breakdown Capacity1250 VA
Max. Switching Voltage400 VAC, 300 VDC
Set/Reset Time8 ms/8 ms
