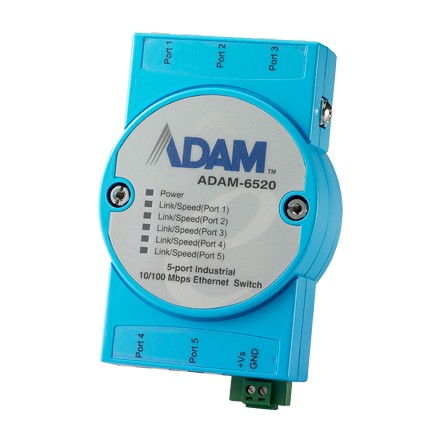

5-port 10/100 Mbps Industrial Switch (ADAM-6520-BE)

by Advantech

Part #: ADAM-6520-BE


View Detailed Description

$125.00

Call for Availability

ADAM-6520 is a 5-port industrial-grade switch with Ethernet connectivity and from 10 to 100 Mbps transfer rates(Auto-negotiation). Just like any other product in the ADAM family, ADAM-6520 can be mounted in three different ways: DIN rail, Wall and Stack. Solid industrial-grade design assures reliable operation in common application areas like: semi-conductor factories, inventory control environments, assembly lines, manufacturing and many more. All modules support a wide voltage range of +10 ~ 30 VDC over the terminal block, and 3,000 VDC surge (EFT) protection ensures that over-voltage is no concern. The wide operating temperature of ADAM-6520 goes from -10 ~ 70°, while ADAM-6520I from -40 ~ 85°. This permits them to be functional in harsh environments. The six inclusive LED indicators make troubleshooting of the modules easier. Each port has a pair of LEDs that indicate link status and port activities. This easily informs users of any collisions, the link status, power failure and data receipts for immediate on-site diagnosis.

  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Provides broadcast storm protection
  • Embedded with a swith controller, supports auto-negotiation
  • Supports 10 ~ 30 VDC voltage power input
  • Provides surge (EFT) protection 3000VDC for power line (ADAM-6520L not equipped)
  • Supports 4,000 VDC Ethernet ESD protection (ADAM-6520L not equippend)
  • Provides flexible mounting: DIN-rail, Wall, Stack
GeneralEthernet Connectors5 x RJ-45
MountingDIN 35 rail, Wall, Stack
CertificationsCE, FCC, UL/cUL 60950-1
I/OTransmission DistanceEthernet up to 100 m
Transmission SpeedUP to 100 Mbps
InterfacePorts Number5
Operating SystemTemperature (Operating)-10 ~ 70°C (14 ~ 158°F) I21 Stack: -10~ 60°C (-40 ~ 140°F)
Power SupplyPower Input1 x Unregulated 10 ~ 30 VDC
Power Connector2-pin removable screw terminal
