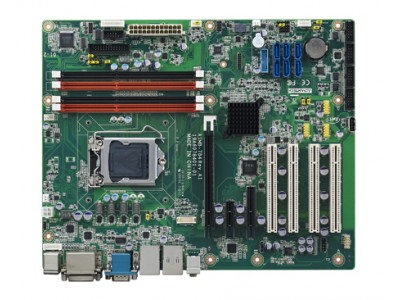

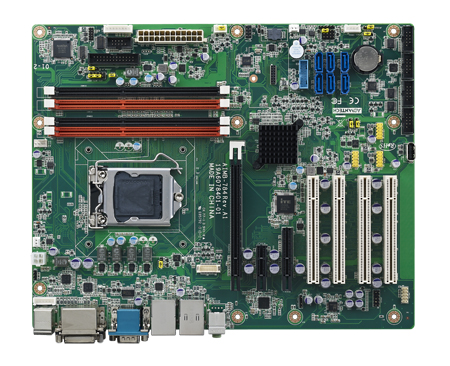

4th Generation Intel Core i7/i5 ATX board with DVI/VGA,6 COM, Dual LAN and DDR3 (AIMB-784G2-00A1E)
by Advantech
•Part #: AIMB-784G2-00A1E
View Detailed Description
$335.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
4th generation Intel® Core™ processor-based platform
- LGA1150 4th Generation Intel® Core™ i7/i5/i3 processors with Q87 chipset
- 4 x DIMM socket support for up to 32GB DDR3 1333/1600
- Supports triple display VGA/2 DVI-D and dual GbE LAN
- Supports four PCI, one PCIe x1(Gen2), one PCIe x4(Gen2), one PCIe x16(Gen3)
- Supports SATA RAID 0, 1, 5, 10, AMT9.0, USB 3.0
- Supports Advantech LPC modules of TPM
| Certification | EMC | CE, FCC |
| Environment | Operational Temperature | 0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature | -40 ~ 85° C (-40 ~ 185° F) | |
| Operating Vibration | 3.5 Grms | |
| Ethernet | Controller | LAN1: Intel I217LM LAN2: Intel I211AT |
| Interface | 10/100/1000 Mbps | |
| Expansion Interface | PCI | 4 |
| PCI Express x 1 | 1 | |
| PCI Express x 4 | 1 | |
| PCI Express x 16 | 1 | |
| Graphics | Controller | Intel HD |
| I/O | COM Port | 5 (4 x RS232, 1 x RS232/422/485) |
| GPIO | 8-bit | |
| LPT | 1 | |
| PS/2 Keyboard/Mouse | 1 | |
| SATA | 6 x SATA III (RAID 0, 1, 5, 10) | |
| USB2.0 | 9 | |
| Management Solution | Software | SUSIAccess |
| Memory | Socket | 4 x 240-pin DIMM |
| Capacity | Up to 32 GB (8GB per DIMM) | |
| Max. Capacity | 32 GB | |
| Technology | Dual Channel (Non-ECC) DDR3 1333/1600 | |
| Physical Characteristics | Dimensions (LxW) | 304.8 x 244 mm (12" x 9.6") |
| Processor System | CPU | Intel Corei3/i5/i7 |
| L3 Cache | 3/4/6/8 MB | |
| BIOS | AMI SPI 128 Mbit | |
| Integrated Graphics | Yes | |
| Speed | 2.7 ~ 3.5 GHz | |
| Chipset | Intel Q87 | |
| Socket | LGA1150 | |
| Rear I/O Interface | USB3.0 | 2 |
| USB2.0 | 2 | |
| COM | 1 (1 x RS232) | |
| PS/2 | 2 (1 x Keyboard, 1 x Mouse) | |
| Audio | 2 (Mic-in, Line-out) | |
| DVI | 2 | |
| Ethernet | 2 | |
| VGA | 1 | |
| WatchDog Timer | Output | System Reset |
| Interval | Programmable 1~255 sec |
