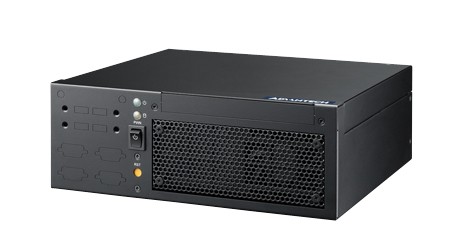

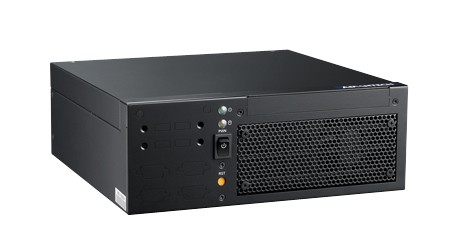

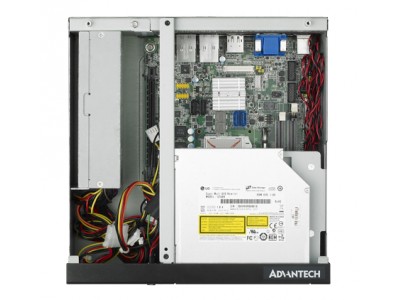

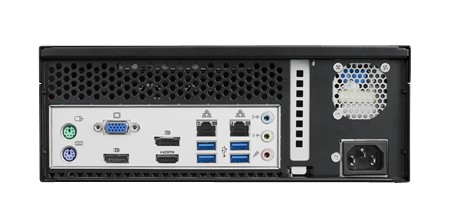

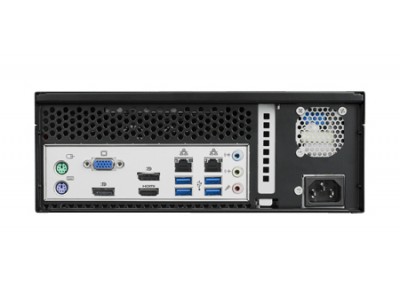

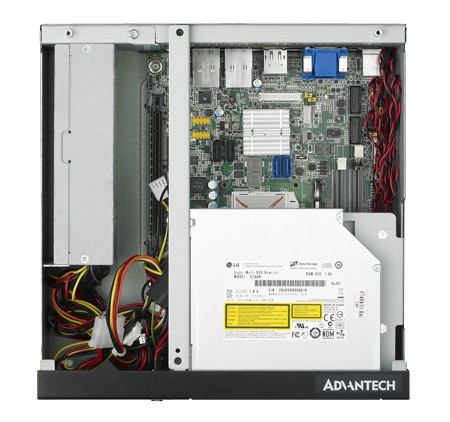

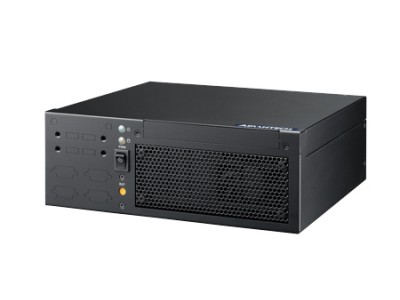

Embedded Mini-ITX Chassis with One Expansion Slot- Bare Version (AIMB-B2000-00YE)

by Advantech

Part #: AIMB-B2000-00YE


View Detailed Description

$75.00

Call for Availability

AIMB-B2000 comes in two mini-ITX chassis versions (2 x SKU)—AIMB-B2000-15ZE and AIMB-B2000-00YE. Both these versions fit Advantech Mini-ITX motherboard range from low power Intel® Atom™ based boards to the most advanced Intel® Core™ i processor solutions. AIMB-B2000-15ZE includes an internal 150W power supply supporting Intel® Core™ i processor based motherboards: AIMB-273, AIMB-272, and AIMB-270. AIMB-B2000-00YE is a barebone chassis which supports low power Intel® Atom™ processor based motherboards: AIMB-214, AIMB-213, AIMB-212; and AMD G-series solution AIMB-223 with external power adaptor.

  • Embedded chassis supports Mini-ITX motherboard

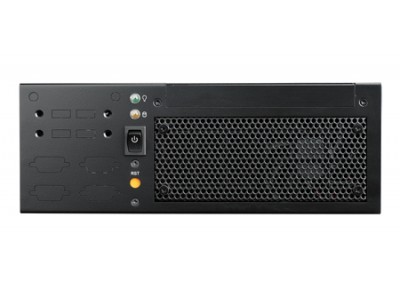

  • Front LED indicators for system fault detection and with one expansion slot

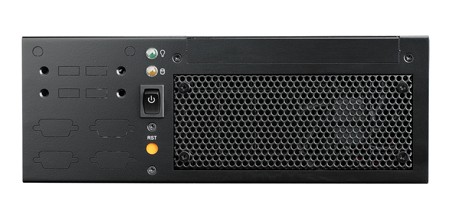

  • Reserved USB, COM and WLAN antenna openings on front window
  • Shock-resistant two 2.5" drive bay
  • Supports Advantech AIMB-214/213/212/223 Motherboards
  • Supports ATX Power Supply & AC-DC Power Adaptor(not included)
CoolingFan1 (7cm/39.45CFM)
Drive Bay3.5" (int)0
5.25"0
3.5" (ext)0
Slim ODD and 2.5" HDD2.5" HDD*2 or 2.5" HDD*1 + slim ODD*1
EnvironmentVibration (5 ~ 500 Hz)1 Grms (HDD*1+ODD*1); 0.5Grms (HDD*2)
Shock Protection10G (with 11ms duration, half sine wave)
Temperature (Operating)0 ~ 40°C (32 ~ 104°F)
Humidity10 ~ 85% @ 40° C, non-condensing
Temperature (Storage)-20 ~ 60° C (-4 ~ 140° F)
ExpansionPCI Express x 161 (maximum:25W for low profile PCIe card)
Form FactorBoard Mini ITX MB
MiscellaneousLED IndicatorsPower & HDD
Power Switch1
Reset Button1
PhysicalDimension (mm)250 x 98 x 255 mm (10.04" x 3.86" x 9.84")
Weight3.1 kg
Reserved OpeningUSB4
Serial4
WLAN Antenna2
Expansion slot1 (low profile)
