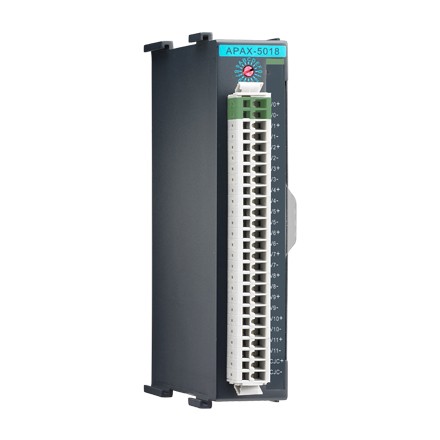

CIRCUIT MODULE, 12-ch Thermocouple Input Module (APAX-5018-AE)

by Advantech

Part #: APAX-5018-AE


View Detailed Description

$480.00

Call for Availability

12-ch Thermocouple Module

  • Isolation between channels and backplane
  • Supports wire burn-out detection functionality (4 ~ 20 mA and Thermocouple)
  • Range: ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
  • Supports configurable input channels with different input type and range
  • High density 12-ch analog input solution for reading thermocouple sensor data
Analog InputSampling Rates12 sample/second (total)
Resolution 16-bit with accurancy ±0.1% or better of Full Scale Range (Voltage), ±0.2% or better of Full Scale Range (Current)
Channels12 (Differential)
Input TypeV, mV, mA, Thermocouple
Input Impedance> 1 MO (Voltage), 120 O (Current)
Wire Burn-out Det.Yes (4~20 mA and Thermocouple)
Common Mode200 VDC
EnvironmentTemperature (Operating)-10 ~ 60°C (when mounted vertically)
Temperature (Storage)-40 ~ 70°C
Relative Humidity5 ~ 95% (non-condensing)
GeneralPower Consumption3.5 W @ 24 VDC (typical)
CertificationsCE, FCC class A
Weight170 g
Enclosure HousingABS+PC
Dimensions30 x 139 x 100 mm
