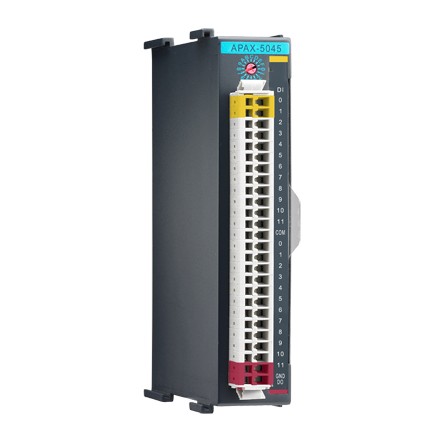

24-ch Digital Input/Output Module (APAX-5045-AE)

by Advantech

Part #: APAX-5045-AE


View Detailed Description

$135.00

Call for Availability

APAX-5045 modules provide excellent flexibility by offering both digital input and output channels. DI channels can accept 2-wiring inputs from a DC voltage source, to determine the state of limits, standard switches or proximity switches, and DO channels can generate discrete signal to external devices and change its output value to control the external devices.

  • 12 DI channels and 12 DO channels
  • ±70 VDC over voltage protection for DI channels
  • Short circuit and thermal shutdown protection
  • Input characteristic curve according to IEC 61131, type 1
  • Each digital channel has its own status LED
  • Isolation between channels and backplane
Digital I/OChannels12 x DI (Sink/Source) 12 x DO (Sink)
Rated Load Voltage24 VDC
Rated CurrentDI: 3 mA DO: 0.5 A
Over Voltage ProtectionYes (DI channels)
Short Circuit ProtectionYes (DO channels)
Thermal Shutdown ProtectionYes (DO channels)
GeneralDescription24-ch DI/O Modules
