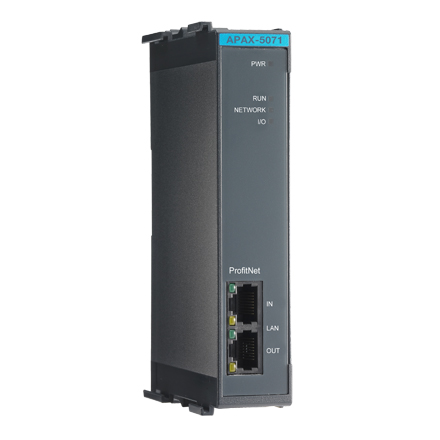

PROFINET Communication Coupler (APAX-5071-AE)

by Advantech

Part #: APAX-5071-AE

View Detailed Description


Call for Availability

PROFINET Communication Coupler

  • 2 x RJ-45 (2-channel switch, share same IP address) Connector
  • PROFINET Communication Coupler
  • Dynamic configuration allows users to configure multiple inputs functions in one module
  • Two ports with the same IP address for building daisy chains
  • Flexible Modbus address mapping either automatically or manually
  • Able to connect to APAX digital I/O modules (max. 768 points) or analog I/O modules (max.192 points)
CommunicationsProtocolsPROFINET RT
Data Transfer Rates10/100 Mbps
Connected I/O Modules32 (max.)*
Digital Signals768 (max.)
Analog Signals192 (max.)
EnvironmentTemperature (Operating)-10 ~ 60° C (mounted vertically)
Temperature (Storage)-40 ~ 85° C
Relative Humidity5 ~ 95% (non-condensing)
GeneralPower Consumption2 W @ 5 VDC (typical)
CertificationsCE, FCC class A
Weight180 g
TopologyLine or Star
Enclosure HousingABS+PC
Dimensions30 x 139 x 100 mm
Connector2 x RJ-45 (2-channel switch, share same IP address)
