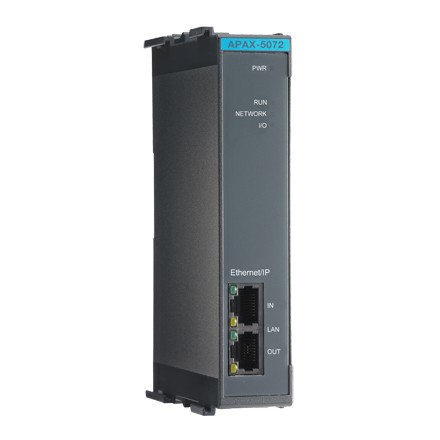

Ethernet/IP Communication Coupler (APAX-5072-AE)

by Advantech

Part #: APAX-5072-AE

View Detailed Description


Call for Availability

The APAX-5072 is a high-density Ethernet/IP remote I/O solution that allows any PC, controller, or HMI device that supports Ethernet/IP protocol to easily and cost-effectively add remote I/O functionality to access data and perform read and write actions. By leveraging the Advantech APAX product line features such as, high density I/O, flexibility, scalability, and hot swap functionality, users can build remote I/O systems to fulfill PLC or control application needs.

  • Get ODVA authorized conformance certification
  • Support Ethernet/IP protocol which can be connected with Ethernet/IP master
  • Dynamic configuration allows users to configure different channels with different type and range in one module
  • Two RJ-45 ports with the same IP address for building daisy chains, saving IP address used and installation cost
  • Able to connect to APAX digital I/O modules or analog I/O modules
Data Transfer Rates10/100 Mbps
Connected I/O Modules32 (max.)*
Digital Signals768 (max.)
Analog Signals192 (max.)
EnvironmentTemperature (Operating)-10 ~ 60° C (mounted vertically)
Temperature (Storage)-40 ~ 85° C
Relative Humidity5 ~ 95% (non-condensing)
GeneralPower Consumption2 W @ 5 VDC (typical)
CertificationsCE, FCC class A
Weight180 g
TopologyLine or Star
Enclosure HousingABS+PC
Dimensions30 x 139 x 100 mm
Connector2 x RJ-45 (2-channel switch, share same IP address)
Protection Isolation Protection1,500 VAC
