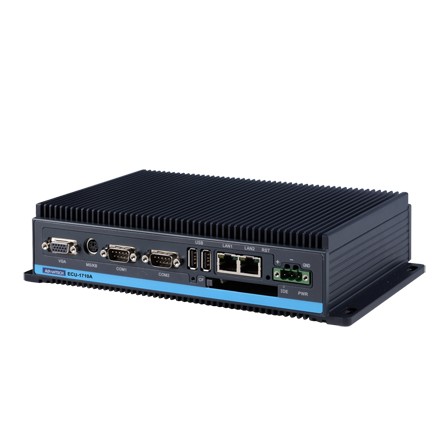

Utility Substation Automation Computer with Intel Atom D510 1.66 GHz, AIO and DIO function (ECU-1710A-A32E)

by Advantech

Part #: ECU-1710A-A32E

View Detailed Description



ECU-1710A is a standalone automation controller with integrated PCI-1710UL and PCI-1720U to provide 16-ch Analog Input, 4-ch Analog Output, 16-ch Isolated Digital Input and 16-ch Isolated Digital Output. This controller also supports serial communication ports and several other networking interfaces. You can seamlessly integrate your applications into the ECU-1710A and speed up your system development with these application ready controllers.

  • Onboard Intel Atom D510 1.66 GHz processor
  • 2 x RS-232 ports
  • 2 x 10/100Base-T RJ-45 ports and 2 x USB ports
  • Integrated PCI-1710UL & PCI-1720U modules
  • 16-ch single-ended or 8-ch differential or a combination of Analog Input
  • 12-bit A/D converter, with up to 100kS/s sampling rate
  • 4-ch 12-bit Analog Output
  • 16-ch Isolated Digital Input/Digital Output
  • 1-ch Isolated Counter
Analog InputSampling Rates100kS/s
Resolution 12 bits
Unipolar Input (V)0~10,0~5
Bipolar Inputs (V)±10,±5
Channels16 single-ended/8 differential
Input Impedance>18MO
Digital OutputChannels16
EnvironmentHumidity (Operating)5 ~ 95% RH, non-condensing (IEC-60068-2-3)
GeneralPower Consumption28 W (Typical)
Weight2.4 kg (Typical)
OS SupportWES 2009
Power Requirement18 ~ 30 VDC (e.g 24 V @ 2 A) (Min. 48 W), AT
Dimensions255 x 152 x 59 mm (10" x 6.0" x 2.3")
Operating Temperature-10 ~ 60°C (14 ~140°F) @ 5 ~ 85% RH
Storage Temperature-20 ~ 80°C (-4 ~176°F)
I/O InterfaceSerial Ports2 x RS-232
LAN2 x 10/100 Base-T RJ-45 ports
USB2 x USB, EHCI, Rev. 2.0 compliant
System HardwareCPUIntel Atom D510 1.66 GHz/ 512 KB L2 Cache
Memory1GB DDRII 667MHZ
Storage1×internal typeI/II CompactFlash® slot,1×Built-in 2.5" SATA HDD bracket
Keyboard/Mouse Ports1 x PS/2
IndicatorsLEDs for power, IDE and LAN (Active, Status)
Timer/CounterResolution16 bits
