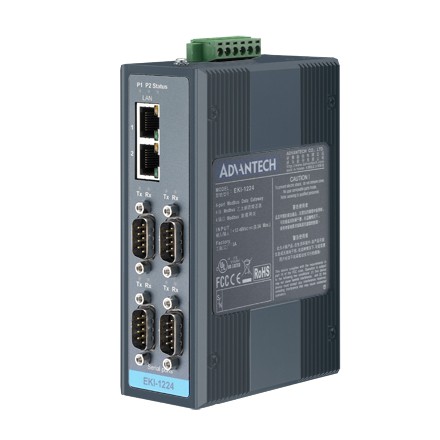

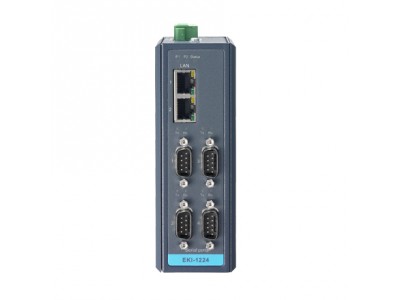

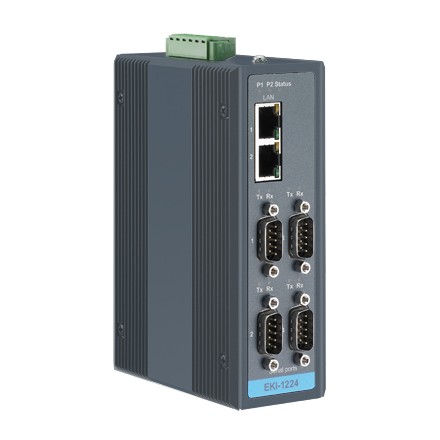

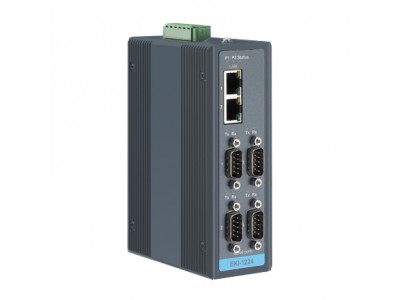

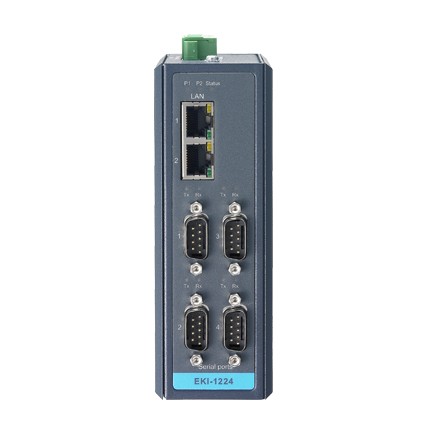

4-Port Modbus Gateway w/ Redundant Ethernet Ports, -10~60C (EKI-1224-BE)

by Advantech

Part #: EKI-1224-BE


View Detailed Description

$494.00

Call for Availability

The EKI-1200 series Modbus gateways are bi-directional gateways for integrating new and existing Modbus/RTU and Modbus/ASCII serial devices to newer TCP/IP networked-based devices. The EKI-1221/1222/1224 feature two independent Ethernet ports and MAC addresses to provide a redundant networking mechanism to guarantee Ethernet networking reliability. They provide a simple and cost-effective way to bring the advantage of remote management and data accessibility to thousand of devices that can not connect to a network. The EKI-1221/1222/1224 provide a feature that can allow users to select master or slave operation mode for each serial port. They not only allow an Ethernet master to control serial slaves, but also allow serial masters to control Ethernet slaves.

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Integration of Modbus TCP and Modbus RTU/ASCII networks
  • Supports up to 921.6 kbps, and any baud rate setting
  • Supports up to 16 connections and 32 requests simultaneously
  • Supports 31 slaves per serial port
  • Mounts on DIN-rail, wall or panel
  • Software selectable RS-232/422/485 communication
  • Built-in 15 KV ESD protection for all serial signals
  • Automatic RS-485 data flow control
ConnectorSerialDB9
Ethernet ConnectorsRJ45
EthernetPorts2
Interface10/100 Mbps
InterfacePorts Number6
Serial CommunicationPorts4
TypeRS-232/422/485
SoftwareBaud Rate50 ~ 921.6 Kbps
Operating ModeModbus RTU Master/Slave, Modbus ASCII Master/Slave
DriverWindows 2000/XP/Vista/7 (32-bit/64bit)
