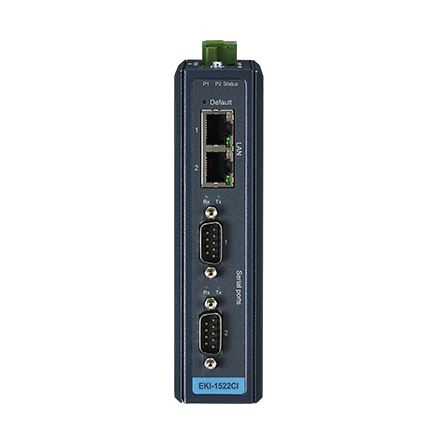

2-Port RS-232/422/485 Serial Device Server w/ Redundant Ethernet Ports & Isolation, -40~75C (EKI-1522CI-BE)

by Advantech

Part #: EKI-1522CI-BE


View Detailed Description

$495.00

Call for Availability

EKI-1521, EKI-1522 and EKI-1524 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. EKI-1521, EKI-1522 and EKI-1524 are serial device servers that connect RS-232/422/485 serial devices, such as PLC, meters, sensors, and barcode reader to an IP-based Ethernet LAN. They allow nearly any device with serial ports to connect and share an Ethernet network. EKI-1521, EKI-1522 and EKI-1524 provide various operations: COM port redirection (Virtual COMport), TCP Server, TCP Client and UDP mode. With COM port redirection mode, standard serial operation calls are transparently redirected to the EKI-1521, EKI-1522 and EKI-1524, guaranteeing compatibility with legacy serial devices and enabling backward compatibility with existing software. With TCP server, TCP client, and UDP modes, EKI-1521, EKI-1522 and EKI-1524 ensure the compatibility of network software that uses a standard network API. Moreover, you can make serial devices communicate with other devices peer-to-peer, without any intermediate host PCs and software programming.

  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Supports up to 921.6 kbps, and any baud rate setting
  • Allows a max. of 5 hosts to access one serial port
  • Allows a max. of 16 hosts to be accessed as TCP client mode
  • Built-in 15 KV ESD protection for all serial signals
  • Automatic RS-485 data flow control
  • Supports surge protection for D.C. power ports with line to line 2 KV, and line to earth 4 KV; for signal ports with 4 KV
  • Support isolation and wide operating temperature
ConnectorSerialDB9
Ethernet ConnectorsRJ45
EthernetPorts2
Interface10/100 Mbps
InterfacePorts Number4
Serial CommunicationPorts2
TypeRS-232/422/485
SoftwareBaud Rate50 ~ 921.6 Kbps
Operating ModeVirtual COM, TCP/UDP server TCP/UDP client Pair connection
DriverWindows 2000/XP/Vista/7 (32-bit/64bit)
