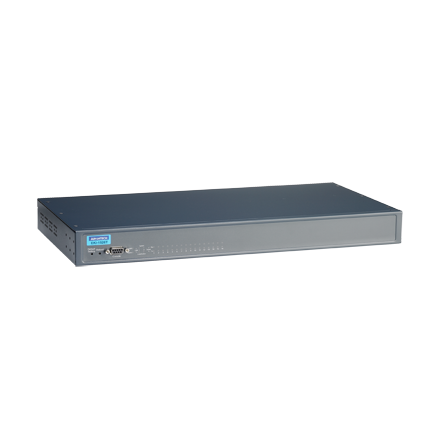

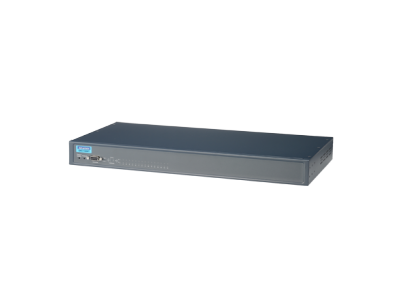

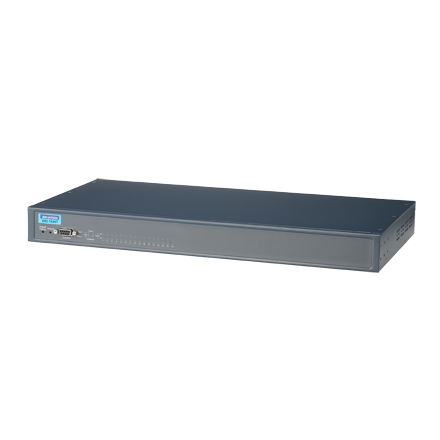

16-Port RS-232/422/485 Serial Device Server w/ Redundant Ethernet Ports -10~60C w/ DC Input (EKI-1526T-VDC-BE)

by Advantech

Part #: EKI-1526T-VDC-BE


View Detailed Description

$1,051.00

Call for Availability

The EKI-1528 and EKI-1526 are industrial-grade network-based serial device servers for connecting up to 8 or 16 serial RS-232/422/485 devices, such as CNCs, PLCs, scales and scanners, directly to a TCP/IP network. The EKI-1528 and EKI-1526 feature two independent Ethernet ports and MAC addresses to provide a redundant network mechanism to guarantee Ethernet network reliability. The EKI-1528 and EKI-1526 provide a simple and cost-effective way to bring the advantages of remote management and data accessibility to thousand of devices that can't connect to an Ethernet network. The EKI-1528 and EKI-1526  offer multiple ways to configure through Windows utility, Web Browser, serial console or Telnet console, these methods make it easy manage many EKI-1528 and EKI-1526 or serial devices on your network.

  • 8 or 16-port RS-232/422/485 serial communication
  • Provides 2 x 10/100 Mbps Ethernet ports for LAN redundancy
  • Supports up to 921.6 kbps, and any baud rate setting
  • Provides COM port redirection (Virtual COM), TCP and UDP operation modes
  • Provides rich configuration methods: Windows utility, Telnet console, Web Browser, and serial console
  • Built-in 15 KV ESD protection for all serial signals
  • Standard 1U rackmount size
  • Automatic RS-485 data flow control
ConnectorEthernet ConnectorsRJ45
SerialRJ45
EthernetPorts2
Interface10/100 Mbps
InterfacePorts Number18
Serial CommunicationPorts16
TypeRS-232/422/485
Baud Rate50 bps ~ 921.6 kbps, any baud rate setting 16 ports up to 230.4 kbps simultaneously
SoftwareBaud Rate50 ~ 921.6 Kbps
Operating ModeVirtual COM, TCP/UDP server TCP/UDP client Pair connection
DriverWindows 2000/XP/Vista/7 (32-bit/64bit)
