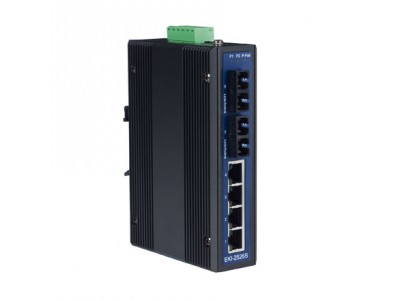

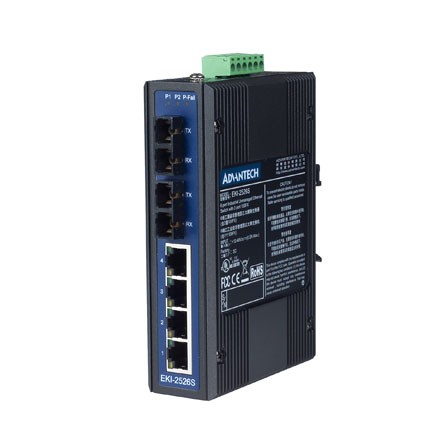

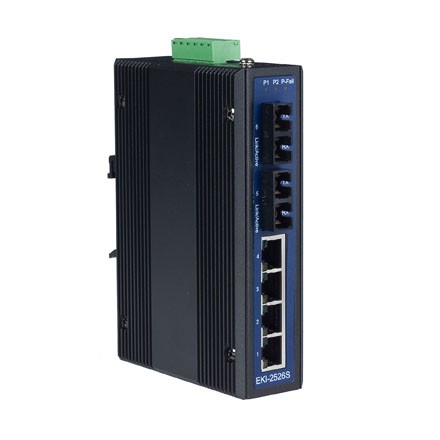

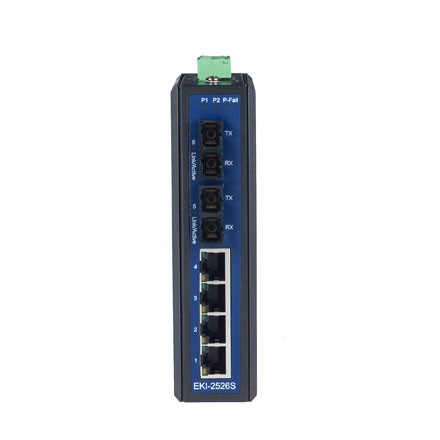

4+2 100FX Port S.M. Unmanaged Ethernet Switch (EKI-2526S-AE)

by Advantech

Part #: EKI-2526S-AE


View Detailed Description

$645.00

Call for Availability

EKI-2525M/2526M/2526S are industrial-grade Ethernet switches that enable you to expand your industrial network fast and cost-effectively. The EKI-2525M/2526M/2526S have four 10/100 Mbps Ethernet ports, and additionally the EKI-2525M/2526M provides one or two multi-mode fiber-optic ports, while the EKI-2526S provides two single-mode fiber-optic ports. Using fiber-optics, you can prevent noise from interfering with your system and supports high-speed (100 Mbps) and high-distance (up to 30 km) transmissions. EKI-2525M/2526M/2526S have industrial-grade designs, assuring high reliability and stability in harsh environments, making it a robust bridge between enterprise fiber-optic backbones and Ethernet devices. EKI-2525M/2526M/2526S includes a switch controller that can automatically sense transmission speeds. The RJ45 interface can also be autodetected, so MDI or MDI-X is automatically selected and a crossover cable is not required. All the Ethernet ports have memory buffers that support the store and forward mechanism, assuring all data is transmitted properly.

  • Provides 4 x 10/100 Mbps Ethernet ports with RJ-45 connector
  • Provides 2 x 100 Mbps Single-mode SC type fiber optic port
  • Supports full/half duplex flow control
  • Supports MDI/MDI-X auto crossover
  • Provides 3,000 VDC surge (EFT) protection
  • Provides 4,000 VDC Ethernet ESD protection
  • Provides broadcast storm protection
  • Provides Redundant 12 ~ 48 VDC power input
  • Provides flexible mounting: DIN-rail, Panel mounting
EnvironmentOperating Temperature-10 ~ 60°C (14 ~ 140°F)
GeneralEthernet Connectors4xRJ45 + 2xSC type fiber connector
MountingDIN-rail, Wall
CertificationsCE, FCC, UL/cUL 60950-1, Class I, Division 2
I/OTransmission DistanceEthernet: up to 100 m, Fiber: up to 30 km
Transmission Speed10/100Mbps
InterfacePorts Number6
Power SupplyPower Input2 x Unregulated 12 ~ 48 VDC
Power Connector6-pin removable screw terminal
