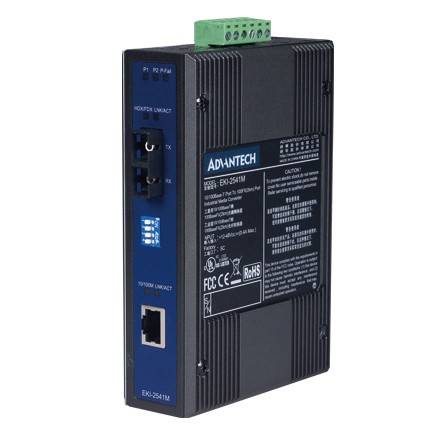

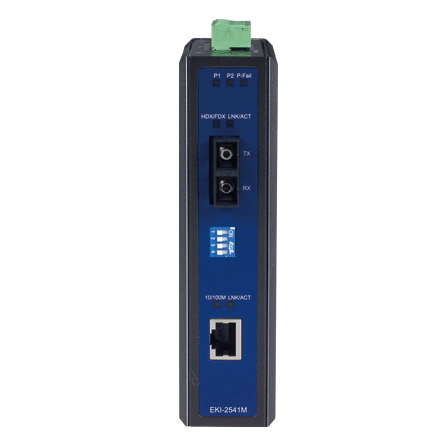

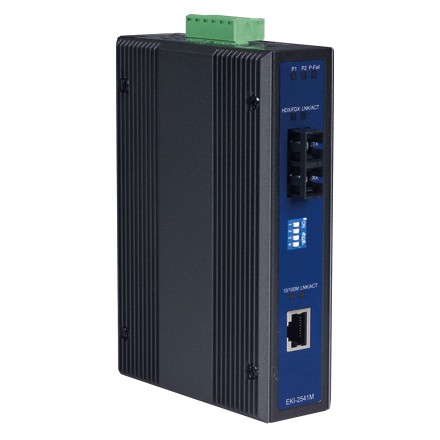

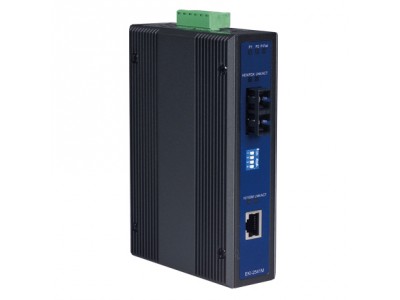

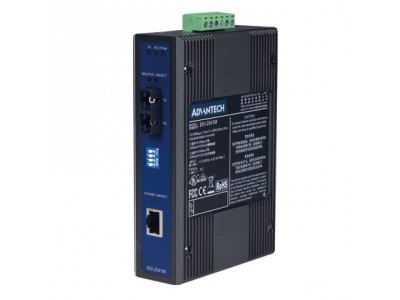

Ethernet to Multi mode Fiber Media converter (EKI-2541M-AE)

by Advantech

Part #: EKI-2541M-AE


View Detailed Description

$175.00

Call for Availability

EKI-2541M/2541S is designed to convert Ethernet networks to fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmissions.Therefore, EKI-2541M/2541S is an ideal solution for “fiber to building” applications at central offices or local sites. EKI-2541M/2541S supports MDI/MDIX auto detection, so you don’t need to use crossover wires. Furthermore, the EKI-2541M/2541S can work normally from -10 to 60°C and accepts a wide voltage range from 12 ~ 48 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments. Link Fault Pass-Through (LFP) EKI-2541M/2541S is an enhanced Ethernet to fiber-optic converter. Aside from its standard features, the versatile EKI-2541M/2541S also has the LFP (Link Fault Pass-through) feature. When one side of the link fails, the other side continues transmitting packets, and waiting for a response that never arrives from the disconnected side. Use the internal jumper to enable the LFP function, then EKI-2541M/2541S will force the link to shut down as soon as noticed that the other link has failed, giving the application software a chance to react to the situation.

  • Provides 1 x 10/100 Mbps Ethernet port with RJ45 connector
  • Provides 1 x 100 Mbps multi-mode SC type fiber port
  • Provides internal jumper for Link Fault Pass-through (LFP) setting
  • Supports full/half duplex flow control
  • Supports store and forward transmission
  • Supports auto-negotiation
  • Supports MDI/MDI-X auto crossover
  • Provides surge (EFT) protection 3,000 VDC for power line
  • Supports 4,000 VDC Ethernet ESD protection
  • Supports +12-48 VDC power input
  • Provides flexible mounting: DIN-rail & Panel Mounting
  • Supports Operating Temperature from -10 ~ 60° C
GeneralPower Consumption2.7W max. @ 48VDC
Power Input 12 ~ 48 VDC, redundant dual inputs
Ethernet Connectors1 x RJ-45 and 1 x SC type fiber connector
MountingDIN-rail, Wall
I/OTransmission DistanceEthernet: Up to 100m Multi-mode Fiber:Up to 2 km
Transmission SpeedUP to 100 Mbps
InterfacePorts Number2
Operating SystemTemperature (Operating)-10 ~ 60°C (14 ~ 140°F)
Power SupplyPower Input12~ 48 VDC, redundant dual inputs
Power Connector6-pin removable screw terminal
