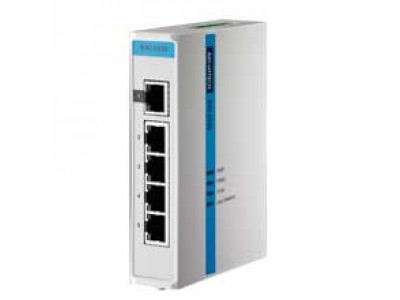

5-port 10/100Mbps Unmanaged Industrial Switch (EKI-3525-AE)

by Advantech

Part #: EKI-3525-AE


View Detailed Description

$79.00

Qty:

The EKI-3525/3528 are a new generation products with green Ethernet design. They feature green solutions that automatically adjust power consumption by detecting the link status and cable length. Designed with 1/2 "VIP" ports to get optimal bandwidth for media traffics through VIP ports users can experience better performance of multimedia streaming preferred through prioritized bandwidth setting. The devices come with compact metal and plastic housing that is IP40 rated to protect against dusty industrial environments. The wide power input power (8.4 to 52.4 VDC) is dedicated to operate in areas of unstable power and rugged environments. It also provides an event alarm and in the event of a power failure and connection loop, the intergrated LED will activate the alarm to notify administrators.

  • Supports IEEE 802.3az, Energy Efficient Ethernet standard - Automatically powers down ports that have no link - Budgets power output for different Ethernet cable length
  • Supports IEEE 802.1p QoS- VIP port setting -Ensures high priority to time sensitive data and video streaming.
  • Supports redundant 12 ~ 48 VDC power input and P-Fail relay
  • In Loop detection
EnvironmentOperating Temperature-10 ~ 60°C (14 ~ 140°F)
GeneralEthernet Connectors5 x RJ45, 6-pin removable screw terminal (power & relay)
MountingDIN-rail, Wall
CertificationsUL 60950-1, CAN/CSA-C22.2 No.60950
I/OTransmission DistanceEthernet : Up to 100m
Transmission SpeedUP to 100 Mbps
InterfacePorts Number5
Power SupplyPower Input12 ~ 48 VDC, redundant dual inputs
Supply Current500 mA max. per channel
