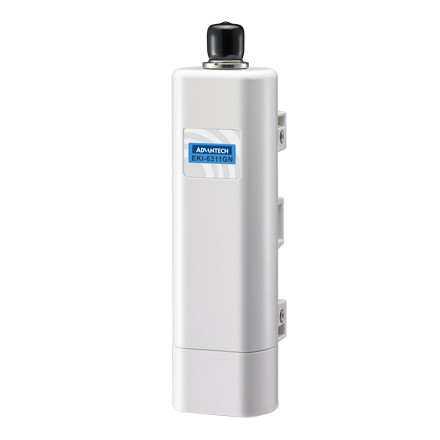

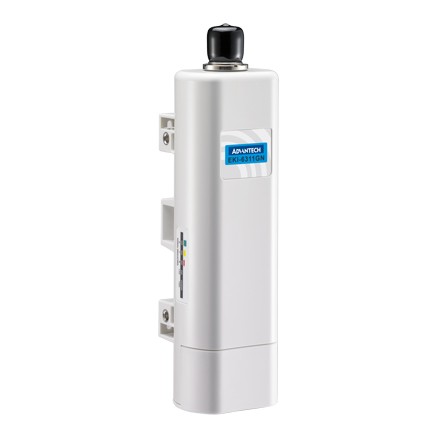

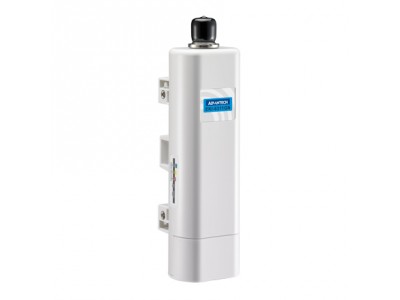

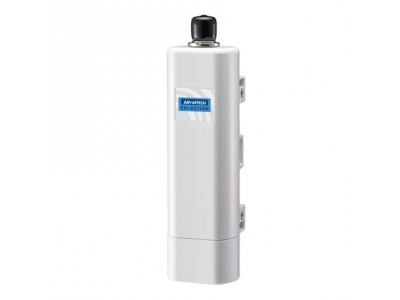

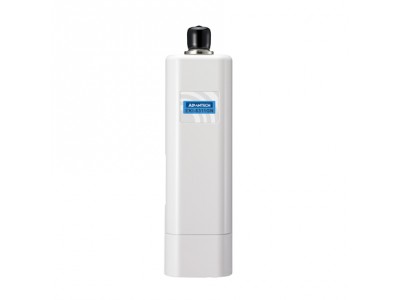

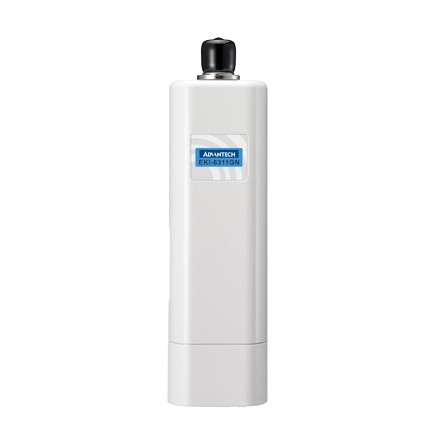

IEEE 802.11 b/g/n Wireless Access Point/Client Bridge (EKI-6311GN-AE)
by Advantech
•Part #: EKI-6311GN-AE
View Detailed Description
$395.00
The EKI-6311GN is a feature rich wireless AP/CPE which provides a reliable wireless connectivity for industrial environments. The PoE injector enhances flexibility in deployment of this AP/CPE even where the DC power supply is hard to fulfill. As an 802.11n compliant device, EKI-6311GN provides 3 times higher data rates than legacy 802.11g devices. With the support of STP, WMM and IGMP snooping protocols, EKI-6311GN effectively improves the reliability of wireless connectivity, especially in applications that need high reliability and high throughput data transmission. To secure wireless connections, EKI-6311GN implements the latest encryption technologies including WPA2/WPA/802.1x for powerful security authentication.
- Compliant with IEEE802.11b/g/n
- IP55 waterproof certification

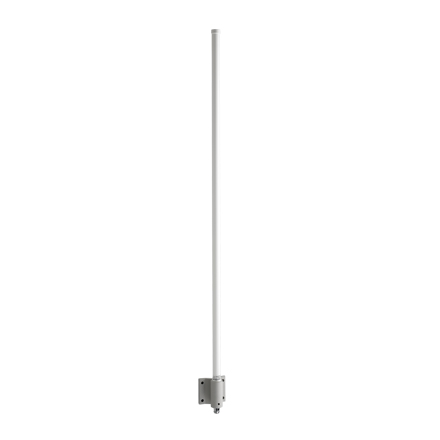

- Embedded 8d Bi-directional antenna with external N-type connector for optional antenna
- High output power 600mW
- Passive 12V PoE
- Support distances up to 5Km
- WEP/WPA/WPA2/ IEEE 802.1 x authentication support
- Spanning Tree and IGMP snooping protocol support
- For full spec and descriptions of the Wireless AP Devices and Accessories, Click Here.
| General | Certifications | FCC |
| Interface | IEEE Standard | 802.11 b/g/n |
| 100Base-TX | v | |
| 1000Base-TX | - | |
| Radio Number | 1 | |
| Ports Number | 1 | |
| Mechanism | Wall Mount | - |
| VESA Mount | - | |
| Pole Mount | v | |
| IP Grade | IP55 | |
| Operating Mode | Mesh | - |
| Mobility/Roaming | - | |
| Multi-Hopping | - | |
| AP/Client | v | |
| Operating System | Temperature (Operating) | -20 ~ 70°C (-4 ~ 158°F) |
| Power | PoE | Passive 12V |
| Power Input | 15 VDC | |
| Redundant DC Power Input | - | |
| RF | MIMO | 1T1R |
