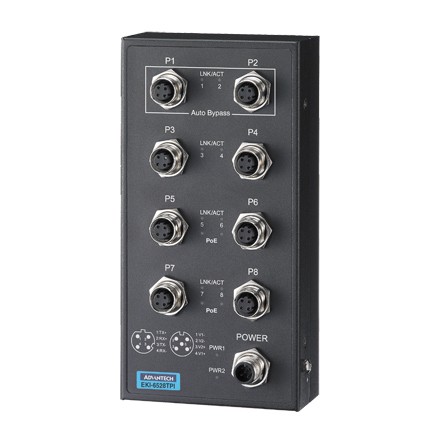

EN50155 8-port M12 Unmanaged PoE Switch with Wide Temperature (EKI-6528TPI-AE)

by Advantech

Part #: EKI-6528TPI-AE


View Detailed Description

$750.00

Call for Availability

EKI-6528TI and EKI-6528TPI are EN50155 certified industrial switches with IP40 protection and wide temperature support designed for railway applications. EKI-6528TPI provides 4 x PoE ports that support IEEE 802.3af and can provide up to 15.4 watts of power per port. M12 connectors ensure highly reliable connectivity for industrial communication applications. With IP40 compact metal housings, these switches are protected against dusty environments and are a good fit for many industrial applications. Under no-power condition, 'Auto Bypass' function ensures the Ethernet signal connection through internal circuitry. This feature provides non-stop communication to rolling stocks even no power exists in some of the carriages.

  • Auto Bypass between Port 1 and Port 2
  • EN50155 certified
  • Backplane (Switching Fabric): 1.6 Gbps
  • Wide redundant power design
  • 4-port PoE type M12
  • Dual redundant power input
  • Supports wide operating temperature (-40~ 75� C)
CommunicationsLAN10/100Base-T(X)
StandardIEEE 802.3,IEEE 802.3u,IEEE 802.3x,IEEE 802.3af
Transmission SpeedUp to 100Mbps
EnvironmentTemperature (Operating)-40 ~ 75° C (-40 ~ 167° F)
Temperature (Storage)- 40 ~ 85° C (-40 ~185° F)
GeneralEthernet ConnectorsM12
MountingDIN-rail, Wallmount
CertificationsCE/FCC
I/OTransmission DistanceEthernet: Up to 100m
Transmission SpeedUP to 100 Mbps
InterfaceEthernetM12, 4-pole D-coded, Female x 8
Ports Number8
MechanismEnclosureIP40 protected metal shell
Dimensions (W x H x D)92 x 180 x 42 mm
MountingDIN-rail, Wall mount
Operating SystemTemperature (Operating)-40 ~ 75°C (-40 ~ 167°F)
PowerPower Consumption72W max. @ 48VDC
Power Input24 ~ 48 VDC, redundant dual inputs
Power ConnectorM12, 5-pole A-coded, male x 1
P-Fail Output1A @ 24 VDC
P-Fail ConnectorM12, 8-pole A-coded, Female x 1
Power SupplyPower Input24 ~ 48 VDC, redundant dual inputs
Power ConnectorM12, 5-pole A-coded, male x 1
Protection Power ReversePresent
