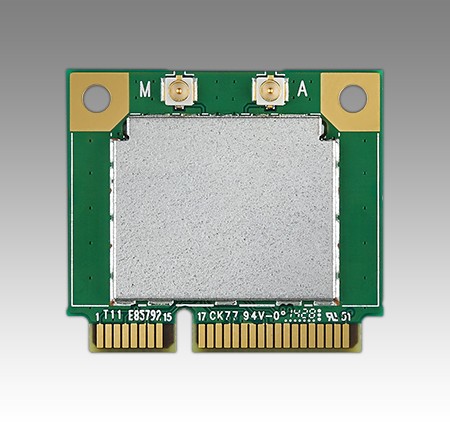

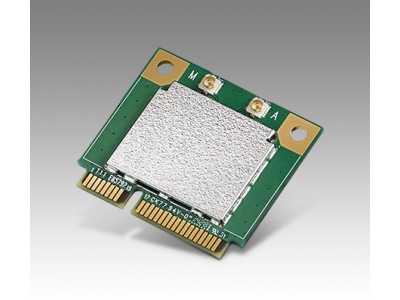

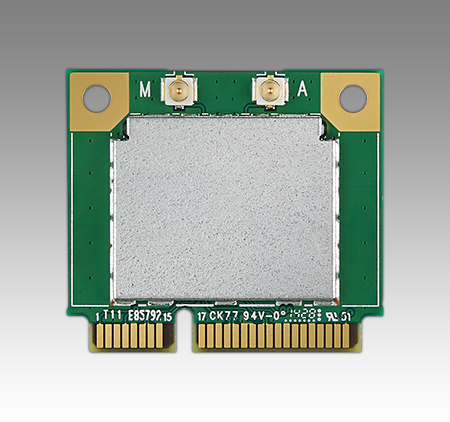

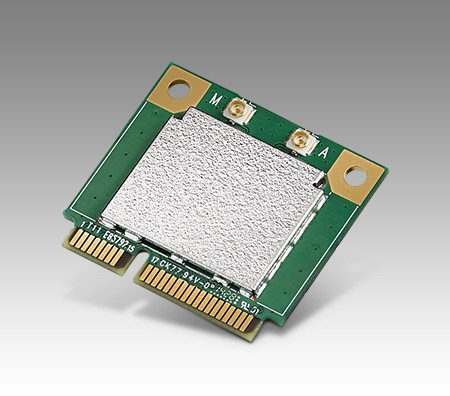

Half-size Mini PCIe Card with 802.11 a/b/g/n/ac,RTL8821AE,with BT4.0 (EWM-W157H01E)
by Advantech
•Part #: EWM-W157H01E
View Detailed Description
$16.00
Call for Availability
Due to supply chain inconsistencies, our team will need to verify availability before we can add this item to your cart. Click here to call.
The EWM-W157H01E is 802.11 ac/a/b/g/n 433.3Mbps and Bluetooth 4.0. It is Realtek RTL8821AE solution.
- IEEE 802.11ac/a/b/g/n WiFi with Bluetooth 4.0 standard
- 1Tx/1Rx with Bluetooth
- Up to 433.3 Mbps data rate
- Fully BT 4.0 and BT 3.0 + High speed system
- Operating temperature: 0 to +70° C
| WiFi Module | Form Factor | Half Size Mini PCIe Card |
| Wireless Standard | 802.11 ac/a/b/g/n | |
| Chipset | Realtek RTL8821AE | |
| Signal Protocol | WiFi: PCIe & BT: USB Differential | |
| Antenna | 2 x U.FL connectors (1T/1R) | |
| Operating Voltage | DC 3.3V ± 9% | |
| Operational Temperature | 0 ~ 70°C | |
| Dimensions (L x W x H) | 29.85 x 26.65 x 1.5 mm | |
| Security | 64/128-bit WEP, WPA, WPA2 | |
| MIMO | 1T x1R | |
| Data Rate | 433.3Mbps | |
| O.S Supported | Win 7/8.x | |
| Host Type | PCIe Mini card |
