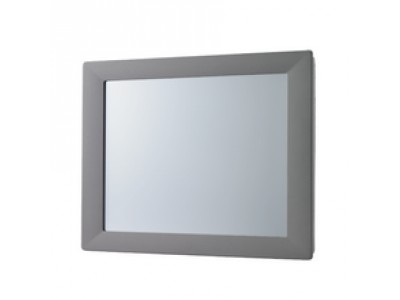

12" SVGA LCD Industrial Monitor with Resistive Touchscreen, Al-Mg Bezel, VGA (FPM-2120G-R3AE)

by Advantech

Part #: FPM-2120G-R3AE

View Detailed Description



FPM-2120G are industrial-grade 12'' TFT LCD with LED backlightflat panel monitor with an Al-Mg front panel, a modern appearance, and one of the most competitive prices for 12'' LCD with LED backlight monitor on the market. The FPM-2120G are also extremely light and thin, and provides many industrial-grade features such as a stainless steel chassis, VESA mounting flexibility, and more. The FPM-2120G are especially suitable for industrial PCs such as IPC-610 or IPC-6806. This combination leads to an extremely reliable and tough system, ready to operate in a wide variety of industrial applications.

  • 12'' SVGA TFT LCD with LED backlight
  • Robust design with aluminum front panel
  • Anti-reflective screen with tempered glass
  • Supports Panel, Wall, Desktop, Rack or VESA arm mounting
  • Combo RS-232 & USB interface for touchscreen function
  • Front panel is IP65 compliant
DisplayDisplay Size12"
Display TypeSXGA TFT LCD with LED backlight
Max. Colors16.2 M
Max. Resolution800 x 600
Backlight Life (hrs)50,000 hrs
Luminance (cd/m2)450
Viewing Angle (H/V°)160°(V),140°(H)
EnvironmentOperating Temperature0 ~ 50°C (32 ~ 122°F)
Storage Temperature-20 ~ 60°C (-4 ~ 140°F)
Storage Humidity10 ~ 95% non-condensing
Vibration5 ~ 500 Hz, 1 Grms (Operating, Random)
WaterproofFront Panel IP65 Compliant
GeneralCertificationsBSMI, CCC, CE, FCC, UL
Dimensions311 x 237 x 40.63 mm (12.24" x 9.33" x 1.60")
EnclosureFront panel: Aluminum, Rear cover: SECC chassis
MountingPanel, wall, desktop, VESA arm
Power Input External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
Video PortVGA
Weight (Net)4kg (8.82 lbs)
TouchscreenOS SupportWindows® XP, Vista, 7, 8, 10, XPe, CE and Linux
Lifespan36 millions times with a silicone rubber of R8 finger, hitting rate is calculated as being 250g at 2 times per second
