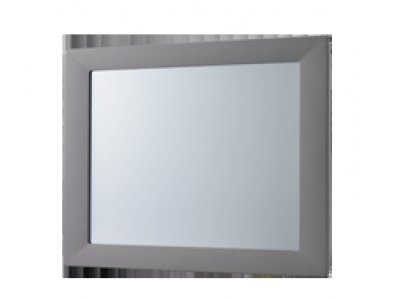

15" SXGA LCD Industrial Monitor with Resistive Touchscreen, Al-Mg Bezel, VGA (FPM-2150G-R3AE)

by Advantech

Part #: FPM-2150G-R3AE


View Detailed Description

$750.00

Call for Availability

FPM-2150G is an industrial-grade 15" TFT LED LCD flat panel monitor with an Al-Mg front panel, a modern appearance, and one of the most competitive prices for 15" LCD monitors on the market. The FPM-2150G is also extremely light and thin, and provides many industrial-grade features such as a stainless steel chassis, VESA mounting flexibility, and more. The FPM-2150G is especially suitable for industrial PCs. This combination leads to an extremely reliable and tough system, ready to operate in a wide variety of industrial applications.

  • 15" XGA TFT LCD with resolution up to 1024 x 768
  • Thin, robust design with aluminum front panel
  • Anti-reflective screen with tempered glass
  • Combo RS-232 & USB interface for touchscreen function
  • Supports industrial 24-48 VDC power input (optional)
  • OSD control pad on front panel
  • Supports Panel, Wall, Desktop, Rack or VESA arm mounting
  • Front Panel is NEMA4/IP65 Compliant
DisplayBacklight Life (hrs)50,000 hrs
Contrast Ratio700 : 1
Display Size15"
Display TypeXGA TFT LCD with LED backlight
Luminance (cd/m2)400
Max. Colors16.2 M
Max. Resolution1024 x 768
Viewing Angle (H/V°)160, 140
EnvironmentHumidity (Storage)10 ~ 95% non-condensing
Operating Temperature0 ~ 50°C (32 ~ 122°F)
Storage Temperature-20 ~ 60°C (-4 ~ 140°F)
Vibration5 ~ 500 Hz, 1 Grms (Operating, Random)
WaterproofFront Panel IP65
GeneralVideo PortVGA
Weight (Net)4.5 kg (9.9 lbs)
Power Input External 60 W power adapter, with AC 100 V ~ 240 V input and DC +12 V @ 5 A output (included)
Button ControlsOSD (Onscreen Display) control pad on rear cover
CertificationsBSMI, CCC, CE, FCC, UL
Dimensions (W x H x D)383 x 307 x 48.13 mm (15.08" x 12.09" x 1.89")
EnclosureFront panel: Aluminum with coating, Rear cover: SECC coating chassis
MountingPanel, wall, desktop, VESA arm, or 19" rackmount with optional mounting kit
TouchscreenOS SupportWindows® XP, Vista, 7, 8, 10, XPe, CE and Linux
Lifespan36 millions times with a silicone rubber of R8 finger, hitting rate is calculated as being 250g at 2 times per second
