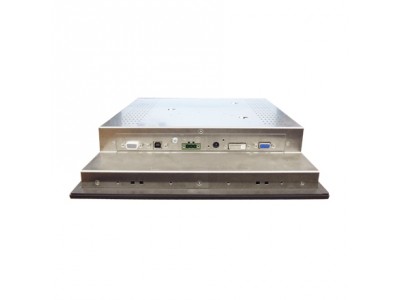

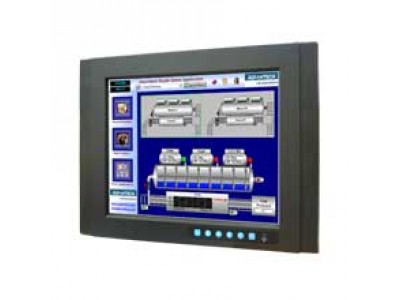

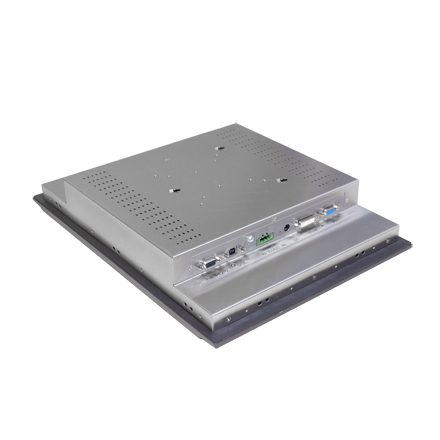

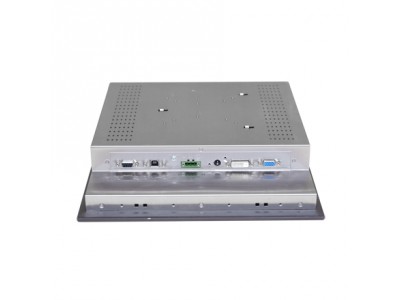

15" XGA LED backlight LCD with low power consumption (FPM-3151G-X0AE)

by Advantech

Part #: FPM-3151G-X0AE

View Detailed Description



The FPM-3151G is a particularly rugged and reliable 15” XGA wide temperature industrial monitor for a variety of industry applications. Equipped with a hard anodized coating, stainless steel chassis, and -20 to 60°C operating temperature, it can satisfy demands in a wide range of harsh industrial applications. This model also features enhanced 5-wire resistive touch and system ground isolation protection to enhance the reliability. FPM-3151G also provides lockable OSD keys on the front panel with two user-defined contrast/brightness settings.

  • 15" XGA LED backlight LCD with low power consumption

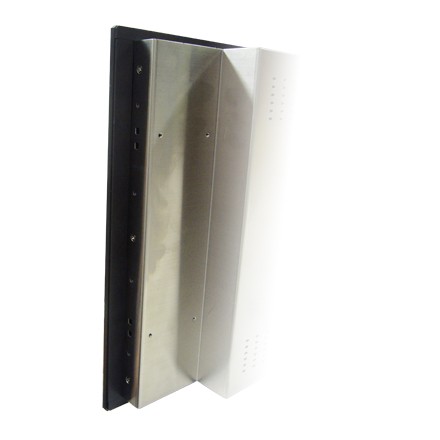

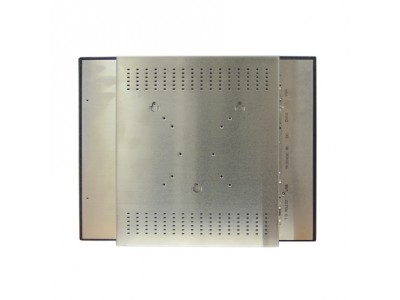

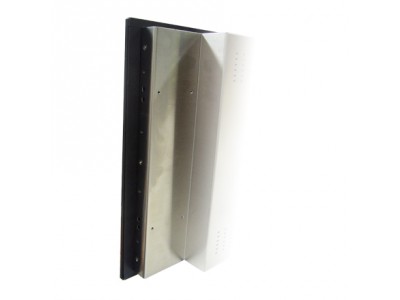

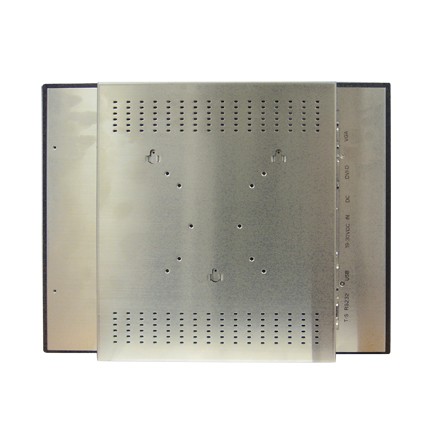

  • Robust anodized coated aluminum front bezel and stainless steel rear cover
  • Supports wide operating temperatures
  • Increase reliability by enhanced 5-wire resistive touch sensor
  • Anti-reflective screen with tempered glass
  • Full enclosure ground isolation protection
  • Does not support Windows 98
DisplayDisplay Size15"
Display Type15" XGA
Max. Colors16.2 M
Max. Resolution1024 x 768
Backlight MTBF(hrs)50,000
Luminance (cd/m2)350
Viewing Angle (H/V°)160/140
EnvironmentOperating Temperature-20 ~ 60°C (-4 ~ 140°F)
Storage Temperature-30 ~ 80°C (-22 ~ 176°F)
GeneralCertificationsCE, FCC Class A, BSMI, CCC, UL, Energy Star
Dimensions422 x 310 x 70 mm
Power Input Voltage12v & 24v

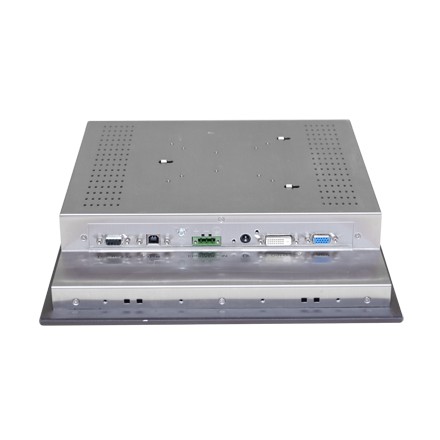

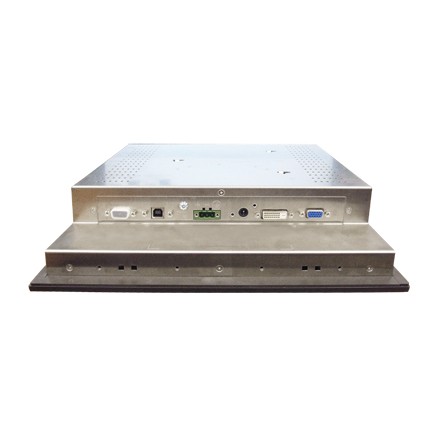

Video PortVGA/DVI
Weight (Net)7.73kg
Operating SystemWindows XP, Vista, 7,8, XPe, CE and Linux

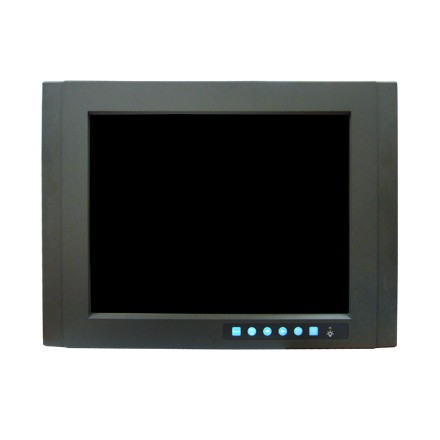

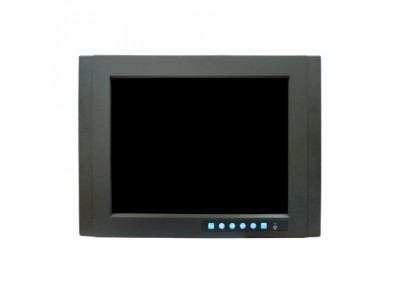

OSD(onscreen display)On rear side with lockable function
TouchscreenLifespan36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s
Light TransmissionAbove 80%
OS SupportWindows® XP,Vista,7,8,XPe,CE and Linux
Power Consumption+5 V @ 100 mA
Type5-wire Resistive with enhanced ITO film
