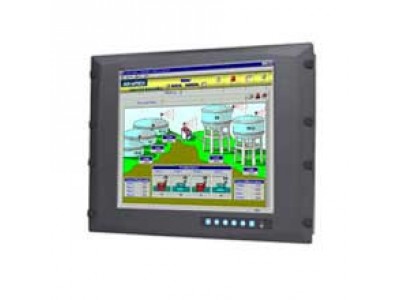

8U 17" XGA Industrial Monitor with VGA/DVI (FPM-3171G-X0AE)

by Advantech

Part #: FPM-3171G-X0AE

View Detailed Description



FPM-3171G is a 17"color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 17", it presents an simple display area as well as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the e x isting system. The onscreen display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel IP65 compliance.

  • 17''SXGA TFT LCD with LED backlight
  • Robust design with stainless steel chassis and aluminum front panel
  • Anti-reflective screen with tempered glass
  • OSD control pad on front panel
  • Supports industrial 24VDC power input
  • Supports panel, wall, desktop, rackmount (8U pre-drilled mounting holes) or VESA arm mounting
  • Front panel is IP65 compliant
EnvironmentOperating Temperature-20 ~ 60°C (-4 ~ 140°F)
Storage Temperature-30 ~ 80°C (-22 ~ 176°F)
Humidity (Storage)95% @ 60°C . non-condensing
WaterproofFront panel is IP65 compliant
Vibration5 ~ 500 Hz, 1 Grms (Operating, Random)
GeneralCertificationsBSMI, CCC, CE, FCC Class A, UL
Dimensions 482 x 354.8 x 63.9mm
Power Input Voltage12v & 24v
Video PortVGA/DVI
Weight (Net)9.25kg
Operating SystemWindows XP, Vista, 7,8, XPe, CE and Linux
OSD(onscreen display)On rear side with lockable function
LCD DisplayDisplay TypeSXGA TFT LCD with LED backlight
Max. Colors16.7M
Display Size17"
Backlight Lifetime50, 000 hrs
Luminance (cd/m2)350
Contrast Ratio1000:1
Viewing Angle (H/V°)160/140
TouchscreenLifespan35 million touches at a single point
Light Transmission80% ±5
OS SupportWindows® XP,Vista,7,8,XPe,CE and Linux
Power Consumption+5 V @ 100 mA
