19" SXGA LCD Industrial Monitor with Resistive Touchscreen and Steel Chassis (FPM-3191G-R3AE)

by Advantech

Part #: FPM-3191G-R3AE

View Detailed Description


Call for Availability

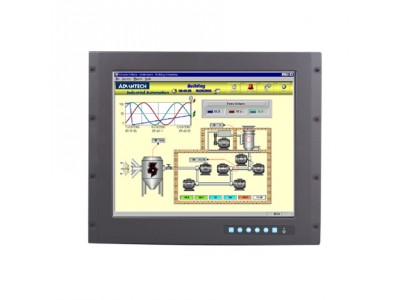

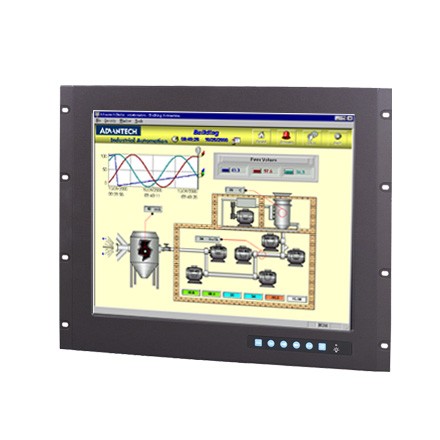

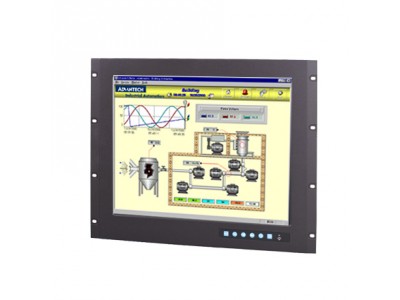

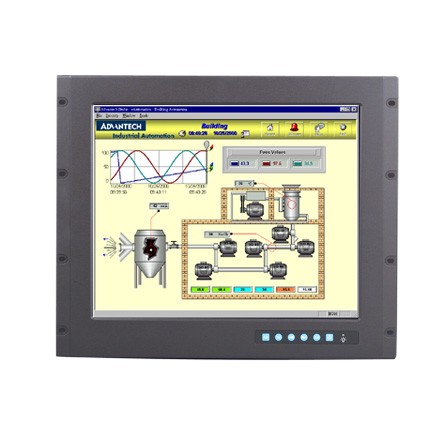

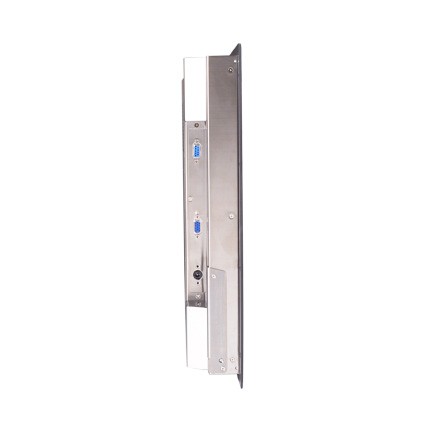

FPM-3191G is a 19'' color TFT LCD flat panel monitor specifically designed for industrial applications. With a viewing size as large as 19", it presents an simple display area as well as vivid and sharp images for your HMI. It features direct VGA signal transmission. You can thus upgrade the displays without making changes to the existing system. The onscreen display function also makes it easy to adjust the images on the screen. The whole chassis is designed in stainless steel and the front panel is made of aluminum with front panel IP65 compliance.

  • 19" SXGA TFT LCD with LED backlight, 1280x1024 resolution
  • Robust design with stainless steel chassis and aluminum front panel
  • Anti-reflective screen with tempered glass
  • OSD control pad on front panel
  • Supports industrial 24 VDC power input
  • Combo RS-232 & USB interface for touchscreen function
  • Supports panel, wall, desktop, rack or VESA arm mounting
  • Front panel is IP65 compliant
  • Supports 9U rack mounting via pre-drilled rackmount mounting holes
EnvironmentOperating Temperature0 ~ 50°C (32 ~ 122°F)
Storage Temperature-20 ~ 60°C (-4 ~ 140°F)
GeneralCertificationsBSMI, CCC, CE, FCC Class A, UL
Dimensions482mm x 399mm x 67 mm (18.98" x 15.71" x 2.64")
Power Input Voltage12v & 24v
Video PortVGA/DVI
Weight (Net)10.65kg
Operating SystemWindows XP, Vista, 7,8, XPe, CE and Linux
OSD(onscreen display)On rear side with lockable function
LCD DisplayContrast Ratio1000:1
Max. Resolution1280x1024
Display Size19"
Display TypeSXGA TFT LCD with LED backlight
Max. Colors16.7M
Backlight Lifetime50, 000 hrs
Luminance (cd/m2)350
Viewing Angle (H/V°)170/160
TouchscreenLifespan35 million touches at a single point
Light Transmission80% ±5
OS SupportWindows® XP,Vista,7,8,XPe,CE and Linux
Power Consumption+5 V @ 100 mA
