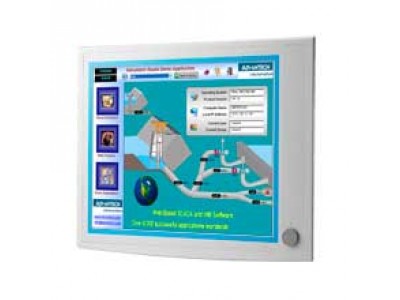

19" SXGA LCD Display Industrial Monitor (FPM-5191G-X0AE)
by Advantech
•Part #: FPM-5191G-X0AE
View Detailed Description
- 19" SXGA TFT LCD with resolution up to 1280 x 1024
- Direct VGA & DVI-D video input interface
- Lockable OSD keys with 2 user-defined contrast/brightness settings
- Flat-sealed front panel
- Robust design with anti-rust chassis and aluminum die-cast front panel
- Front accessible USB connector
- Combo RS-232 & USB interface for touchscreen function (optional)
- Supports industrial 10-30 VDC power input
- Supports panel, wall, desktop, rack or VESA arm mounting
- Front panel is NEMA4/IP65 compliant
- If the FPM-5191G-X0AE will be installed in an AC power environment, purchase of the AC Power Adapter (Advantech P/N: 1757002742) is a must. See Accessories below.
| Temperature (Operating) | 0 ~ 50° C (32 ~ 122° F) | |
| Temperature (Storage) | -20 ~ 60° C (-4 ~ 140° F) | |
| Humidity (Storage) | 10 ~ 90% non-condensing | |
| Vibration Protection | 5 ~ 500 Hz, 1 Grms (Operating, Random) | |
| Waterproof | Front panel is IP65 compliant | |
| Button Controls | OSD control pad on rear side with lockable function | |
| Certifications | BSMI, CCC, CE, FCC Class A, UL | |
| Dimensions (W x H x D) | 481.93 x 384.6 x 59 mm (18.97" x 15.14" x 2.32") | |
| Enclosure | Front panel: Aluminum and flat-sealed, Rear cover: Anti-rust coating | |
| Mounting | Panel, wall, desktop, VESA arm, or 19" rackmount | |
| Power Consumption | 18 W + 20%/31 W + 20%/32 W + 20% | |
| USB | Front USB access for extension | |
| Video Port | VGA & DVI-D | |
| Weight (Net) | 10 kg (22.04 lbs) | |
| Viewing Angle (H/V°) | 170/160 | |
| Luminance (cd/m2) | 350 | |
| Backlight Life | 50,000 | |
| Contrast Ratio | 1000:1 | |
| Max. Resolution | 1280x1024 | |
| Max. Colors | 16.2M | |
| Display Type | SXGA TFT LCDs | |
| Display Size | 19" | |
| Driver | Penmount 6000 | |
| Light Transmission | > 80% | |
| OS Support | Windows 2000, XP, Vista, 7, XPe, CE and Linux | |
| Power Consumption | +5 V @ 100 mA | |
| Touch Resolution | Linearity | |
| Sensor | AMT | |
| Type | 5-wire Resistive | |
| Interface | RS-232 and USB |
