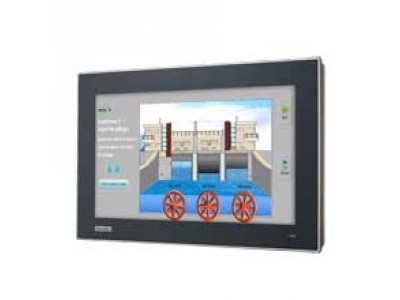

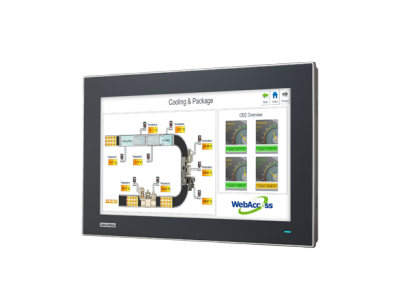

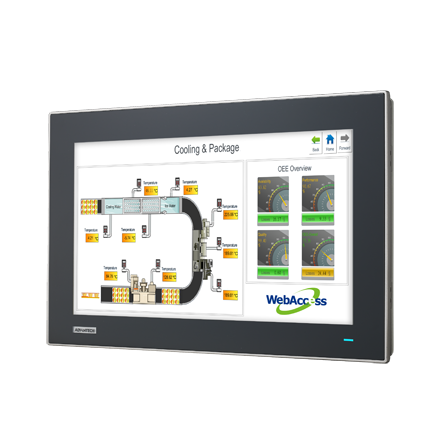

15.6" Widescreen Industrial Monitor, with Projected Capacitive Touch, Direct-VGA/DVI & HDMI Ports (FPM-7151W-P3AE)

by Advantech

Part #: FPM-7151W-P3AE

View Detailed Description



With its brand new design, the FPM-7151W provides a new wide screen display size with industrial grade design concept. By truly-flat touch screen, the front bezel meets IP66 testing criteria. FPM-7151W projected capacitive touch can support 10 points (via USB interface in Windows 7/8) touch application. New easy installation design can help you with one person for panel mounting.FPM-7151W monitor with slim enclosure is ideally suited to being either panel or wall mounted.

  • 15.6" WXGA TFT LED LCD backlight LCD with truly-flat multi-touch screen
  • 16:9 wide screen display, view area increases by 40%
  • Supports 10 points multi-touch via USB interface in Windows 7/8
  • Slim type design for Panel mount / Wall mount easy installation
  • Various mounting options: panel, wall, desktop and VESA arm mounting
  • Projected Capacitive Touchscreen with reliable glass surface
  • Robust design with SECC chassis and Magnesium alloy front panel with IP66 compliance
  • OSD control pad on rear cover & Lockable I/O connectors
  • Two types of video port selections- VGA/DVI or VGA/HDMI
EnvironmentHumidity (Storage)10 ~ 90% non-condensing
Operating Temperature0 ~ 55°C (32 ~ 131°F)
Storage Temperature-20 ~ 60° C (-4 ~ 140° F)
Vibration5 ~ 500 Hz, 1 Grms (Operating, Random)
WaterproofFront panel is IP66 compliant
GeneralPower Input Phoenix Jack: 24 VDC input
MountingPanel, wall, desktop, VESA (MIS,100,C)
Power Consumption20 W + 20%
Video PortVGA & DVI-D
Weight (Net)5 kg (11 lbs)
EnclosureFront panel: Die-cast Magnesium alloy, Rear cover: SECC
CertificationsBSMI, CCC, CE, FCC Class A, UL
Dimensions (W x H x D)419.7 x 269 x 47.7 mm (16.52" x 10.59" x 1.88")
OSD ControlsOSD control in rear cover
LCD DisplayBacklight Life50,000 hrs
Contrast Ratio500 : 1
Display Size15.6"
Luminance (cd/m2)300
Max. Colors16.7M
Max. Resolution1366 x 768
Viewing Angle (H/V°)170/160
InterfaceRS-232 and USB
Light TransmissionAbove 75%
Multi Touch10 points, USB interface in Win 7/8.
OS SupportWindows XP, Vista,7, 8, XPe and Linux
TypeProjected capacitive touch

Be the first to review this product!

Write a review

Note: HTML is not translated!
0 1 2 3 4 5

Product Questions & Answers

Still not finding what you're looking for? Try .

The maximum resolution supported on Advantech’s FPM-7151W-P3AE Widescreen Industrial Monitor is 1366 x 768.
