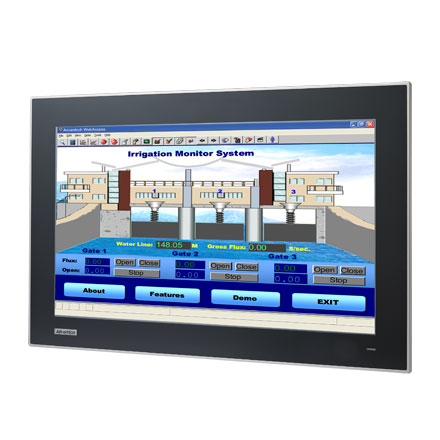

21.5" Industrial Widescreen Monitor with PCT Touchscreen (FPM-7211W-P3AE)

by Advantech

Part #: FPM-7211W-P3AE

View Detailed Description



With its brand new design, the FPM-7211W provides a new wide screen display size with industrial grade design concept. By truly-flat touch screen, the front bezel meets IP65 testing criteria. FPM-7211W projected capacitive touch can support 5-points touch application. New easy installation design can help you with one person for panel mounting.FPM-7211W monitor with slim enclosure is ideally suited to being either panel or wall mounted.

  • 21.5" Full HD TFT LED backlight LCD 16:9 wide screen display
  • Truly-flat touch screen with IP65 compliance
  • Slim design for easy Panel mount / Wall mount installation
  • Projected Capacitive Touchscreen, capable of Multi touch input
  • Supports industrial 24VDC power input
  • Supports panel, wall, desktop and VESA arm mounting
  • VGA & DVI-D port, OSD control pad on rear panel
  • Robust design with SECCl chassis and Magnesium alloy front panel and Lockable I/O connectors
DisplayDisplay Size21.5"
Display Type21.5" Full HD TFT LED LCD
Max. Colors16.7 M
Max. Resolution1920 x 1080
Backlight MTBF(hrs)50,000
Luminance (cd/m2)300
Viewing Angle (H/V°)178/178
EnvironmentOperating Temperature0 ~ 55°C (32 ~ 131°F)
Storage Temperature-20 ~ 60°C (-4 ~ 140°F)
WaterproofFront panel is IP66 compliant
GeneralDimensions558.4 x 349.8 x 47.7 mm (21.98" x 13.77" x 1.88")
Power Input VoltagePhoenix Jack: 24 VDC input
DC Power Input(voltage)External 57 W powern adapter, with 100 ~ 240 VAC input and 12 VDC @ 4.75 A output
Video PortVGA & DVI-D
Weight (Net)8kg
Operating SystemWindows XP, Vista, 7, 8, XPe and Linux
OSD(onscreen display)in rear cover
CertificationsBSMI, CCC, CE, FCC Class A, UL
MountingRear cover: SECC
EnclosureFront panel: die-cast magnesium alloy
Touchscreen (Optional)TouchscreenProjected Capacitive Touch
