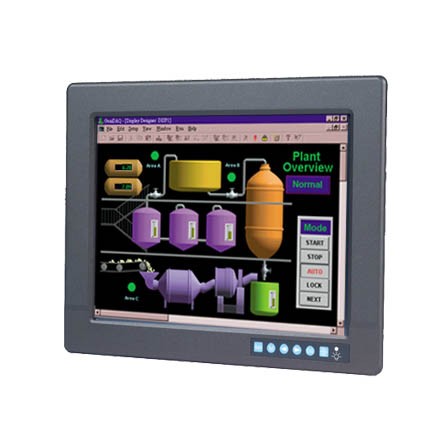

LCD DISPLAY, 12.1" XGA Industrial Monitor w/ Direct VGA (FPM3121GR3A1101E-T)

by Advantech

Part #: FPM3121GR3A1101E-T

View Detailed Description
  • Call or Chat for availability
  • Ships Within 1 - 2 Weeks



  • 12.1" XGA LED backlight LCD
  • Robust anodized coated aluminum front bezel and stainless steel rear cover
  • Supports wide operating temperatures (-20 ~ 60° C)
  • Increase reliability by enhanced 5-wire resistive touch sensor
  • NEMA4/IP65 compliant front bezel with anti-reflective tempered glass
  • Full enclosure ground isolation protection
  • Supports VGA/DVI input, dual touch
  • Supports panel, VESA, wall and desktop stand mounting
DisplayBacklight Life (hrs)50,000 hrs
Display TypeSVGA TFT LCD
EnvironmentVibration5 ~ 500 Hz, 1 Grms (Operating, Random)
WaterproofFront Panel IP65 Compliant
GeneralPower Input Phoenix Jack: 24 VDC input, DC Jack: external 57 W power adapter, with 100 ~ 240, VAC input and 12 VDC @ 4.75 A output
Dimensions312 x 244 x 60.5 mm (12.28" x 9.61" x 2.38")
Video PortVGA & DVI-D
Weight (Net)4.07 kg (8.975 lbs)
TouchscreenLifespan36 millions times with a silicone rubber of R8 finger, hitting rate is calculated as being 250g at 2 times per second
Light TransmissionAbove 80%
OS SupportWindows® XP,Vista,7,8,XPe,CE and Linux
Power Consumption+5 V @ 100 mA
Type5-wire Resistive with enhanced ITO film
