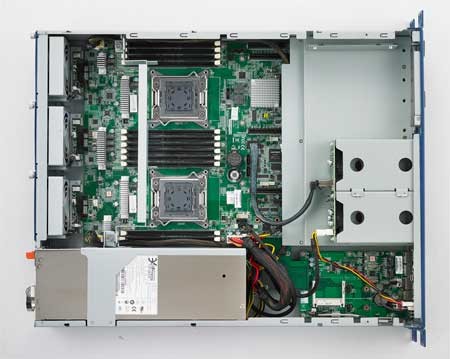

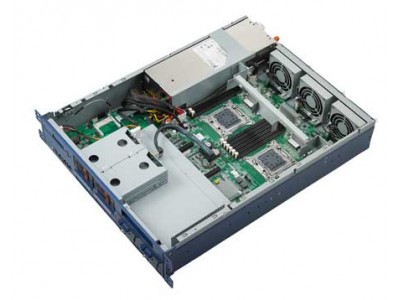

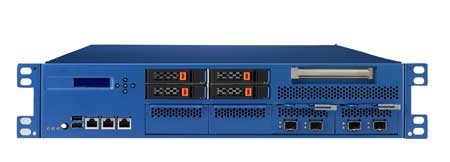

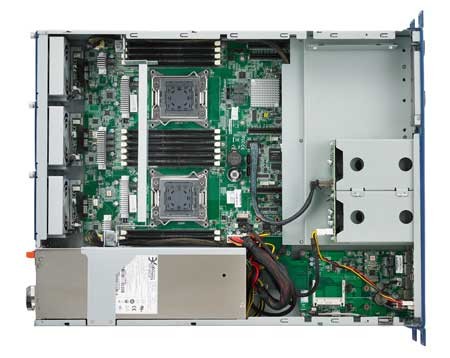

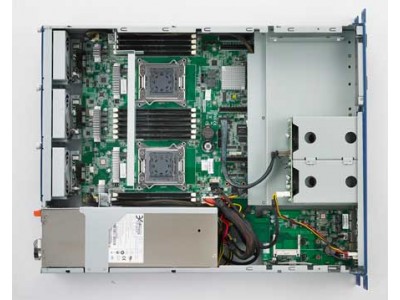

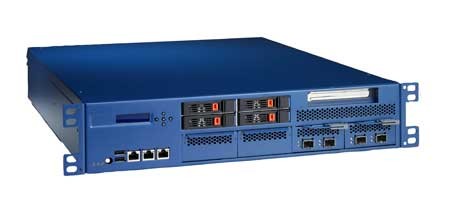

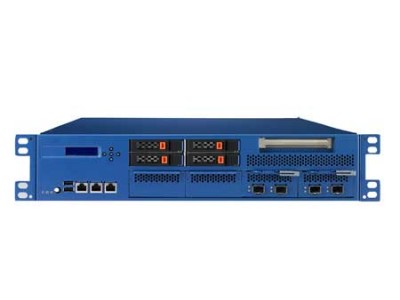

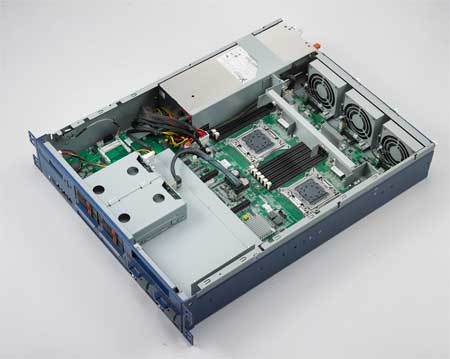

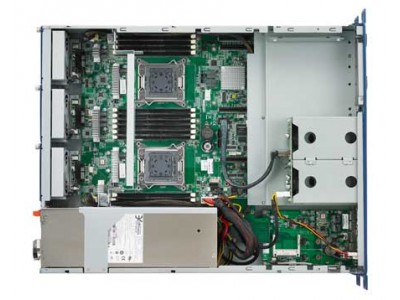

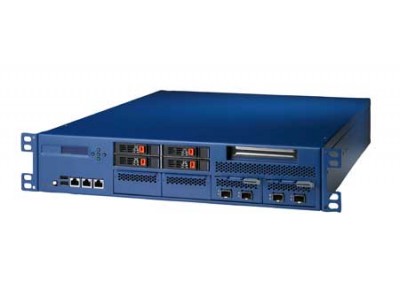

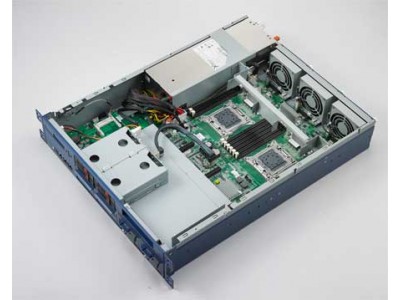

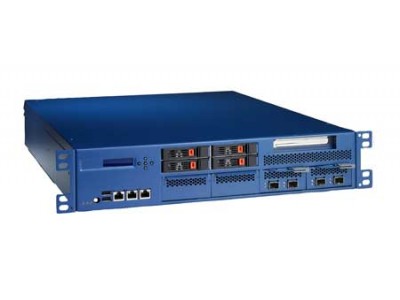

FWA-6510-5S51 | Dual Intel Xeon E5-2600 2U Network Application Platform with 4 NMC and PCIe by Advantech

Base System

Dual Intel Xeon 2U Rackmount Network Platform with Up to 4 PCIe NMC Modules and PCIex8 Slots
- NETWORKING DEV, FWA-6510 Sandy bridge-EP 2U, VAC RPU, 4 NMC $3,844.17 x1

CPU

TWO XEON 2.0G 15M 2011P 6CORE E5-2620(G)
- XEON 2.0G 15M 2011P 6CORE E5-2620(G) $1,039.50 x2
TWO XEON 1.8G 20M 2011P 8CORE E5-2648L PROCESSOR
- XEON 1.8G 20M 2011P 8CORE E5-2648L(G) $2,835.36 x2
TWO XEON 2.1G 20M 2011P 8CORE E5-2658 PROCESSOR
- XEON 2.1G 20M 2011P 8CORE E5-2658(G) $3,118.50 x2
TWO XEON 2.4G 25M 2011P 10CORE E5-2658 PROCESSOR
- XEON 2.4G 25M 2011P 10CORE E5-2658 V2 $3,686.76 x2

CPU Cooler

Memory

48G (6 x 8G) DDR3 1600MHz 240PIN REG 512X8 Memory Module
- 8G DDR3-1600 240PIN REG 512X8 VLP MIC(G) $819.72 x6
96G (12 x 8G) DDR3 1600MHz 240PIN REG 512X8 Memory Module
- 8G DDR3-1600 240PIN REG 512X8 VLP MIC(G) $1,639.44 x12

Hard Disk Drive

None
1 x 2.5' 500GB SATA HDD with 5K RPM and 16MB cache
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- HARD DRIVE, SG 500G 2.5' SATAIII 5KRPM 16MB 7MM 4K $63.36 x1
2 x 2.5' 500GB SATA HDD with 5KRPM and 16MB cache
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $19.80 x2
- HARD DRIVE, SG 500G 2.5' SATAIII 5KRPM 16MB 7MM 4K $126.72 x2
3 x 2.5' 500GB SATA HDD with 5K RPM and 16MB cache
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $29.70 x3
- HARD DRIVE, SG 500G 2.5' SATAIII 5KRPM 16MB 7MM 4K $190.08 x3
4 x 2.5' 500GB SATA HDD with 5K RPM and 16MB cache
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $39.60 x4
- HARD DRIVE, SG 500G 2.5' SATAIII 5KRPM 16MB 7MM 4K $253.44 x4

Solid State Disk (2.5' SSD Hard Drive)

None
SQF 2.5' SSD 820 32G MLC (0~70°C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- 32G 2.5" Industrial Solid State Drive, 820 MLC (0~70C) $67.32 x1
SQF 2.5' SSD 820 64G MLC (0~70°C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- 64G 2.5" Industrial Solid State Drive, 820 MLC (0~70C) $79.20 x1
SQF 2.5' SSD 820 128G MLC (0~70°C)
- CABLE/WIRE, M Cable SATA 7P(W/LOCK)/SATA 7P 60CM C=R 180/180 $9.90 x1
- 128G 2.5" Industrial Solid State Drive, 820 MLC (0~70C) $121.77 x1

Network Mezzanine Card (NMC) Slot 1

None
2-port SFP+ 10GE NMC card
- CIRCUIT BOARD, 2-ports SFP+ 10GE NMC card w/ present pin latch $490.05 x1
4-port GE Copper with LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by RJ45 w/LAN bypass $653.40 x1
4-port GE SFP w/o LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by SFP w/ latch $816.75 x1
8-port Copper GE NMC card w/ bypass
- CIRCUIT MODULE, 8 ports GbE module by RJ45 w/LAN bypass $1,153.35 x1

Network Mezzanine Card (NMC) Slot 2

None
2-port SFP+ 10GE NMC card
- CIRCUIT BOARD, 2-ports SFP+ 10GE NMC card w/ present pin latch $490.05 x1
4 ports GbE module by RJ45 w/LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by RJ45 w/LAN bypass $653.40 x1
4 ports GbE module by SFP w/ latch w/o LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by SFP w/ latch $816.75 x1
8 ports GbE module by RJ45 w/LAN bypass
- CIRCUIT MODULE, 8 ports GbE module by RJ45 w/LAN bypass $1,153.35 x1

Network Mezzanine Card (NMC) Slot 3

None
2-port SFP+ 10GE NMC card
- CIRCUIT BOARD, 2-ports SFP+ 10GE NMC card w/ present pin latch $490.05 x1
4-port GE Copper with LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by RJ45 w/LAN bypass $653.40 x1
4-port GE SFP w/o LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by SFP w/ latch $816.75 x1
8-port Copper GE NMC card w/ bypass
- CIRCUIT MODULE, 8 ports GbE module by RJ45 w/LAN bypass $1,153.35 x1

Network Mezzanine Card (NMC) Slot 4

None
2-port SFP+ 10GE NMC card
- CIRCUIT BOARD, 2-ports SFP+ 10GE NMC card w/ present pin latch $490.05 x1
4-port GE Copper with LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by RJ45 w/LAN bypass $653.40 x1
4-port GE SFP w/o LAN bypass
- CIRCUIT BOARD, 4 ports GbE module by SFP w/ latch $816.75 x1
8-port Copper GE NMC card w/ bypass
- CIRCUIT MODULE, 8 ports GbE module by RJ45 w/LAN bypass $1,153.35 x1

Assembly and Testing

Standard Assembly, Functional Testing, SW installation (General)
- Standard Assembly + Functional Testing + Softwar $77.22 x1

Keyboard

None
Keytronic PS/2 104 Key Keyboard (Black)
- KEYTRONIC PS/2 104 KEY KEYBOARD BLACK(G) $30.69 x1
Keytronic USB 104 Key Keyboard (Black)
- KEYTRONIC USB 104 KEY KEYBOARD BLACK(G) $18.81 x1

Mouse

None
LOGITECH M100 MOUSE OPTICAL USB(G)
- LOGITEC M100 MOUSE OPTICAL USB (G) $10.89 x1

LCD Monitor

None
ViewSonic 17' LED Monitor 5MS (Black)
- VIEWSONIC 17' LED 5MS BLACK(G) $170.28 x1
VIEWSONIC 19' LED 5MS DVI+VGA BLACK
- VIEWSONIC 19' LED 5MS DVI+VGA BLACK(G) $221.76 x1

Flat Panel Monitors

None
15' XGA Industrial Monitor, VGA & DVI + Power Supply
- CABLE/WIRE, Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D $9.90 x1
- POWER SUPPLY, ADAPTER 100-240V57W12V4.75A W/O PFC SPU63-105 L5 $32.67 x1
- 15" XGA LCD Industrial Monitor with Lockable Display Port, USB $653.40 x1
17' SXGA Industrial Monitor, VGA & DVI + Power Supply
- CABLE/WIRE, Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D $9.90 x1
- POWER SUPPLY, ADAPTER 100-240V57W12V4.75A W/O PFC SPU63-105 L5 $32.67 x1
- 17" XGA LCD Industrial Monitor with VGA, DVI, USB $702.90 x1
15' XGA Industrial Monitor w/ Resistive Touchscreen, VGA & DVI + Power Supply
- CABLE/WIRE, Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D $9.90 x1
- POWER SUPPLY, ADAPTER 100-240V57W12V4.75A W/O PFC SPU63-105 L5 $32.67 x1
- 15" XGA LCD Industrial Monitor with Resistive Touchscreen, VGA, DVI, USB $762.30 x1
17' SXGA Industrial monitor w/ resistive touchscreen, VGA, DVI + Power Supply
- CABLE/WIRE, Power Cord 3P UL/CSA(USA) 125V 10A 1.83M 180D $9.90 x1
- POWER SUPPLY, ADAPTER 100-240V57W12V4.75A W/O PFC SPU63-105 L5 $32.67 x1
- 17" SXGA LCD Industrial Monitor with Resistive Touchscreen, VGA, DVI, USB $811.80 x1
